Introduction: Why Engine Bolts Demand the Highest Fastener Discipline
Automotive engine bolts operate in the most punishing environment on a vehicle: sustained temperatures cycling between −40 °C cold starts and 150 °C soak conditions, combustion-induced vibration exceeding 300 Hz, corrosive exposure to coolant, oil, and exhaust condensate, and preload targets that deliberately stretch each bolt to 75–90 % of its proof load. A single improperly manufactured engine bolt can trigger head gasket breach, bearing cap migration, or connecting rod separation — any of which constitutes catastrophic engine failure.
China has emerged as a major production base for automotive engine bolts, supplying OEM plants and Tier 1 engine manufacturers worldwide. However, the quality gap among automotive engine bolts China suppliers is wider than in almost any other fastener category, because engine bolts demand concurrent mastery of metallurgy, heat treatment, thread geometry, and hydrogen management.
This guide maps the metallurgical and dimensional requirements by engine position, equipping procurement engineers with benchmarks to evaluate automotive engine bolts China sources at OEM standards.
Engine Bolt Positions and Their Load Profiles
Each position within an engine subjects the fastener to a distinct loading pattern.
| Engine Position | Primary Load Mode | Operating Temperature | Required Property Class | Tightening Method |
|---|---|---|---|---|
| Cylinder Head Bolt / Stud | Tensile preload + cyclic gas pressure | 100 – 150 °C | 10.9 or TTY (single-use) | Torque + angle (T+A) |
| Main Bearing Cap Bolt | Tensile preload + cyclic bending | 90 – 130 °C | 10.9 / 12.9 | T+A or yield-controlled |
| Connecting Rod Bolt | High-frequency tensile cycling (2× RPM) | 120 – 160 °C | 12.9 or proprietary | T+A with stretch verification |
| Flywheel / Flexplate Bolt | Torsional shear + centrifugal tension | 80 – 110 °C | 10.9 | Torque to specification |
| Exhaust Manifold Stud | Thermal cycling tension | 400 – 750 °C | Stainless 316L or Inconel | Controlled torque with anti-seize |
| Intake Manifold Bolt | Moderate preload + vacuum cycling | 60 – 110 °C | 8.8 – 10.9 | Torque to specification |
| Timing Cover Bolt | Low preload + sealing function | 80 – 120 °C | 8.8 | Torque to specification |
| Oil Pan Bolt | Low preload + gasket compression | 80 – 130 °C | 8.8 | Torque to specification (sequence critical) |
| Valve Cover Bolt | Minimal preload + sealing | 90 – 130 °C | 4.8 – 8.8 | Low torque, gasket-dependent |
| Turbocharger Housing Bolt | High thermal cycling + exhaust pulse | 500 – 900 °C | Inconel 718 or A286 | Controlled torque with Ni anti-seize |
This mapping reveals why automotive engine bolts China suppliers offering only class 8.8 or 10.9 carbon steel are limited to intake, timing, oil pan, and valve cover positions.
Torque-to-Yield vs. Reusable Engine Bolts
A critical distinction in modern engine bolt technology separates single-use TTY bolts from conventional reusable designs.
| Characteristic | Torque-to-Yield (TTY) | Reusable (Conventional) |
|---|---|---|
| Installation Method | Torque + angle (e.g., 40 Nm + 90° + 90°) | Torque to fixed value (e.g., 80 Nm) |
| Preload Consistency | Excellent (±5 % scatter) | Moderate (±15–25 % scatter) |
| Reusability | Single-use only | Reusable if below yield |
| Material Requirement | Controlled Y/T ratio (0.88–0.92) | Standard ISO 898-1 properties |
| Typical Application | Cylinder head, main caps (modern engines) | Intake, exhaust, timing, oil pan |
| Cost Per Bolt | 1.5–2.0× conventional | 1.0× baseline |
TTY bolts demand a tightly controlled yield-to-tensile ratio because installation stretches each bolt past its elastic limit. Automotive engine bolts China manufacturers producing TTY fasteners must hold this ratio within ±0.02 across every lot — a requirement that eliminates most non-specialized suppliers.

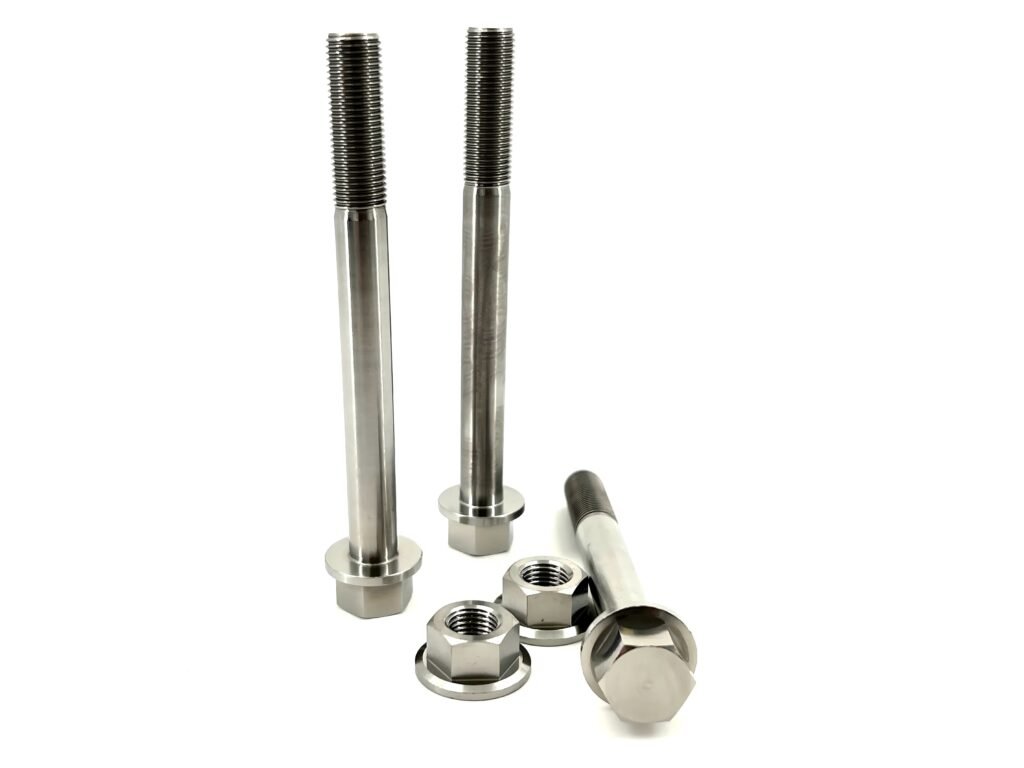

Material Specifications by Engine Position
| Engine Position | Alloy Family | Representative Grades | Key Metallurgical Requirement | Hardness Target |
|---|---|---|---|---|
| Cylinder Head (TTY) | Medium-carbon alloy steel | 34CrMo4, 42CrMo4 | Y/T ratio 0.88–0.92; elongation ≥ 9 % | 32–38 HRC |
| Main Bearing Cap | Alloy steel (Q&T) | 42CrMo4, 40CrNiMo | Fatigue endurance ≥ 10⁷ cycles at 50 % proof | 33–39 HRC |
| Connecting Rod | High-strength alloy | 42CrMoS4, ARP 2000 equiv. | Ultra-clean steel (O₂ ≤ 15 ppm); fatigue ≥ 10⁸ | 36–42 HRC |
| Flywheel | Medium-carbon alloy | 34CrMo4, 35VB | Torsional shear ≥ 600 MPa | 30–36 HRC |
| Exhaust Manifold Stud | Stainless or superalloy | 316L, 321, Inconel 718 | Creep resistance at 650+ °C | 25–44 HRC |
| Intake / Oil Pan / Timing | Medium/low-carbon | 35VB, 38MnB5, 1035 | Standard class 8.8 properties | 22–34 HRC |
Con-rod bolts are the most demanding position, accumulating 10⁸+ fatigue cycles. The material must be vacuum-degassed steel (O₂ ≤ 15 ppm, S ≤ 0.010 %) — a capability to verify during supplier audits.
Heat Treatment Process Windows
| Heat Treatment Stage | Cylinder Head / Con-Rod | Intake / Oil Pan |
|---|---|---|
| Austenitizing Temperature (°C) | 840 – 870 | 830 – 860 |
| Quench Medium | Oil (60–80 °C) | Oil or polymer |
| Temper Temperature (°C) | 450 – 550 | 400 – 500 |
| Temper Time (Hours) | 2.0 – 3.0 minimum | 1.5 – 2.0 |
| Core Hardness (HRC) | 32 – 39 | 22 – 34 |
| Decarburization Limit (mm) | 0.02 (thread root) | 0.05 |
| H₂ Content Post-Plate (ppm) | ≤ 2.0 (baked within 4 hr) | ≤ 3.0 |
Decarburization at the thread root reduces fatigue strength by 30–50 %. Premium automotive engine bolts China manufacturers control this through controlled-atmosphere furnaces with dew-point monitoring.

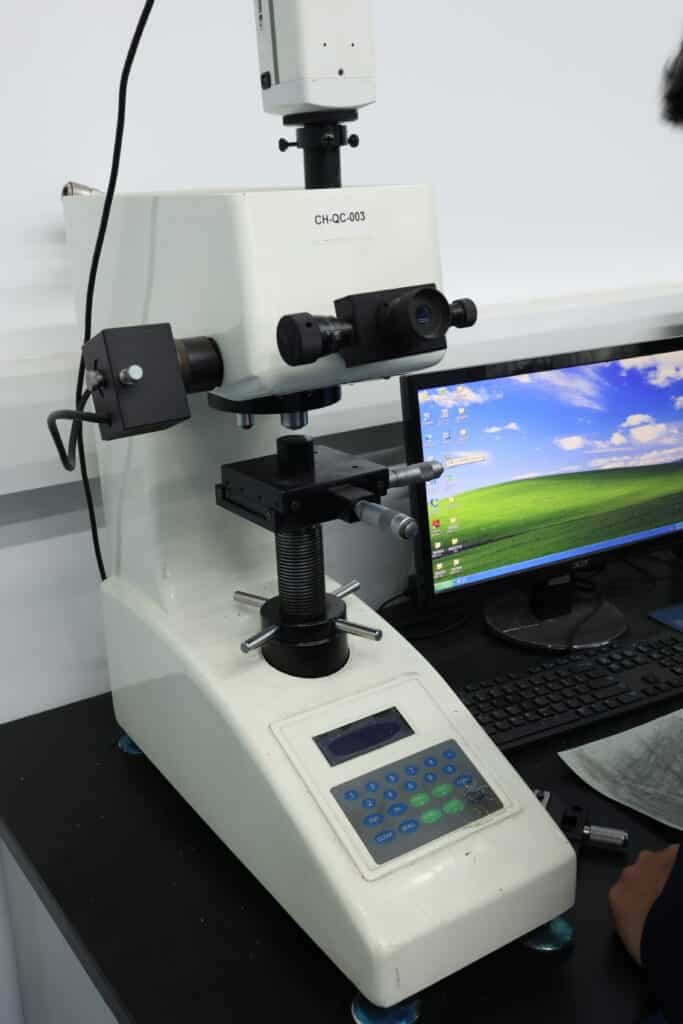

KeyFixPro operates batch furnaces with ±5 °C zone uniformity. Every lot undergoes metallographic cross-section examination at the thread root plus Vickers micro-hardness traverses at 0.05 mm intervals.

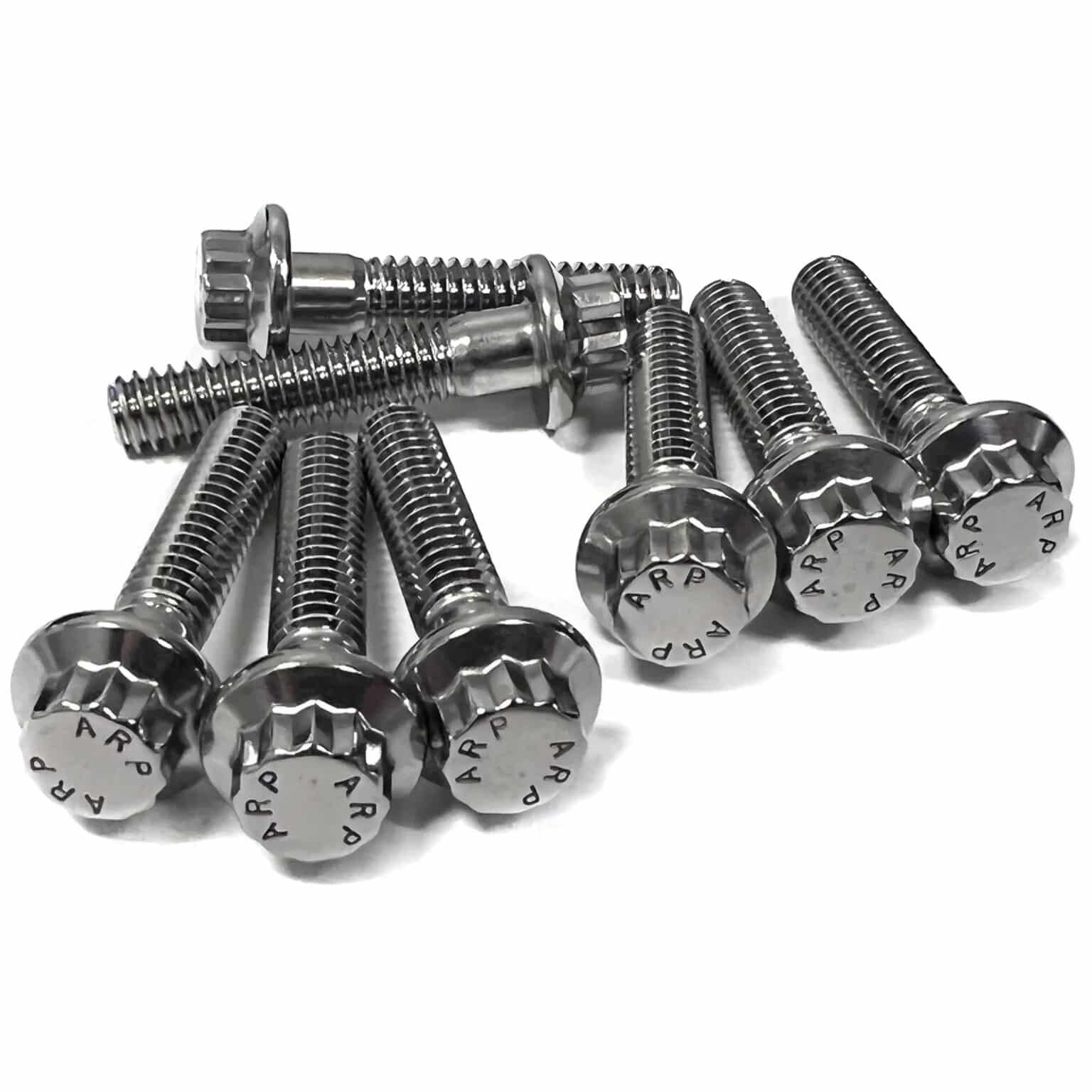

Thread Quality Benchmarks
| Thread Parameter | OEM Requirement | KeyFixPro Capability | Non-Conformance Consequence |
|---|---|---|---|
| Thread Class | 6g (ISO 965-1) | 6g verified by GO/NO-GO | Cross-threading during assembly |
| Thread-Root Finish | Ra ≤ 0.8 μm (rolled) | Ra ≤ 0.8 μm cold-rolled | Fatigue crack initiation |
| Thread Formation | Rolled (mandatory ≥ 10.9) | Planetary/flat-die rolling | Cut threads lose 40–60 % fatigue life |
| Pitch Diameter | ±0.02 mm | ±0.015 mm | Torque-tension scatter > ±20 % |
| Thread Runout (TIR) | ≤ 0.04 mm | ≤ 0.02 mm | Bending stress during tightening |
| Head Perpendicularity | ≤ 0.5° | ≤ 0.3° | Non-uniform bearing; localized overload |
Rolled threads are non-negotiable for engine bolts at class 10.9+. Any automotive engine bolts China supplier offering cut threads on high-strength engine fasteners should be disqualified.

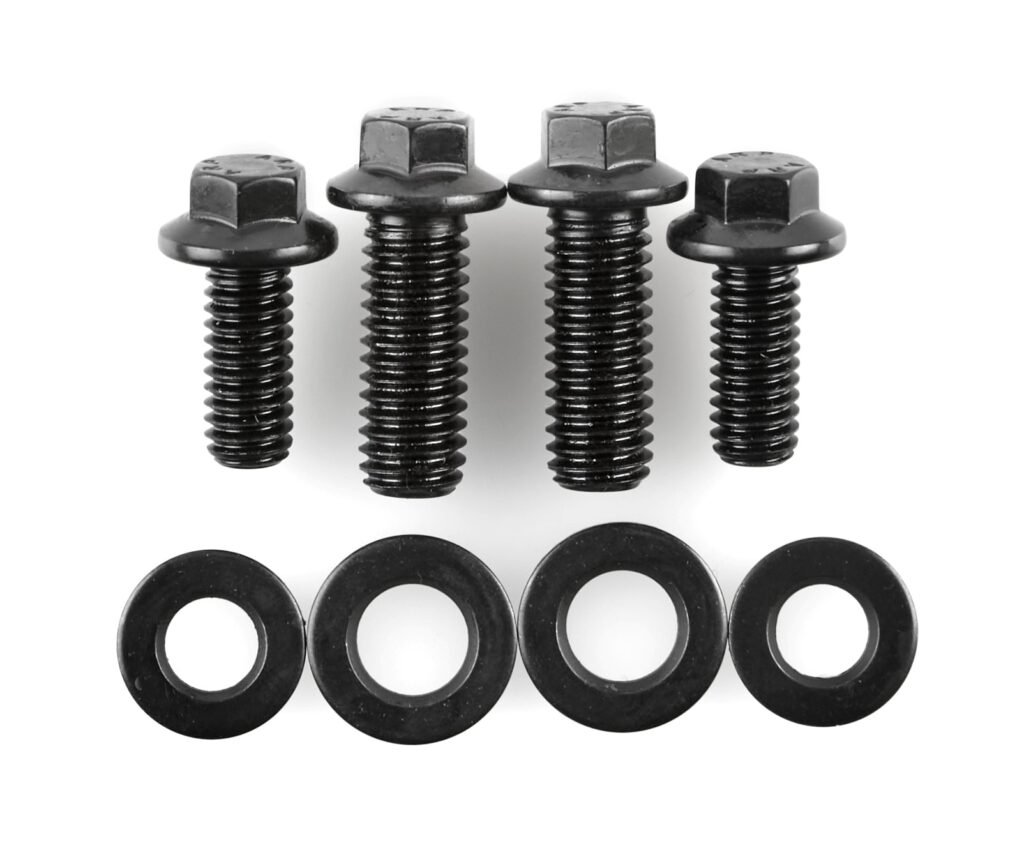

Surface Treatment and H₂ Embrittlement Prevention

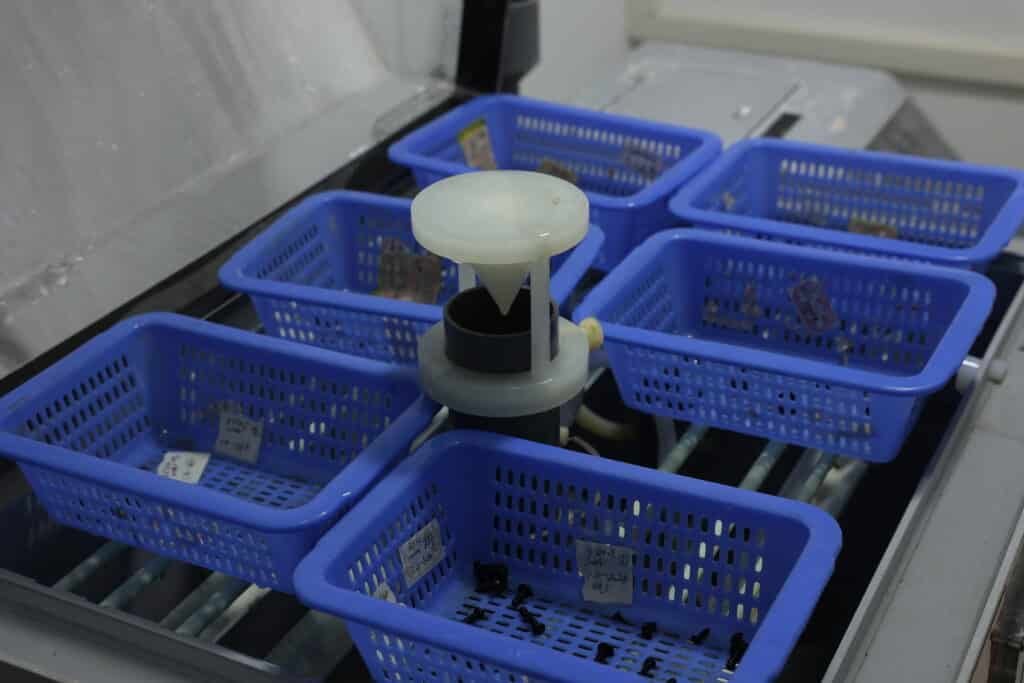

| Coating | Salt Spray (hrs) | H₂ Risk | Post-Plate Bake | Engine Application |
|---|---|---|---|---|
| Phosphate + Oil | 48 – 96 | None | No | Internal engine bolts (head, con-rod, main cap) |
| Zinc Flake (DACROMET) | 500 – 1,000 | None | No | External engine-to-frame mounting |
| Zinc-Nickel Electroplate | 720 – 1,000+ | Moderate | Yes — 190–230 °C, 4 hr | Underbody-exposed engine mounting |
| Black Oxide + Oil | 48 – 72 | None | No | Aftermarket appearance |
| MoS₂ Dry Film | N/A (lubricant) | None | No | Friction-controlled TTY bolts |
For internal engine bolts, phosphate-and-oil dominates because bolts are oil-immersed in service. The phosphate layer provides controlled friction (μ ≈ 0.10–0.14) improving torque-tension consistency. KeyFixPro verifies friction coefficient on every lot, with mandatory hydrogen-relief baking at 200 °C for 8+ hours on any electroplated bolt above class 10.9.
Supplier Qualification Checklist
| Criterion | Minimum Acceptable Standard |
|---|---|
| Quality System | Active IATF 16949 with scope covering forged/rolled engine fasteners |
| Material Sourcing | Steel mill certs traceable to heat; O₂ ≤ 15 ppm for class 12.9+ |
| Cold Forging | Multi-station headers; continuous grain-flow verified by macro-etch |
| Thread Rolling | Planetary/flat-die; Ra ≤ 0.8 μm root; no cut threads on ≥ 10.9 |
| Heat Treatment | Controlled-atmosphere furnaces; ±5 °C uniformity; decarb ≤ 0.02 mm |
| Metallurgical Lab | In-house micro-hardness, metallography, decarburization measurement |

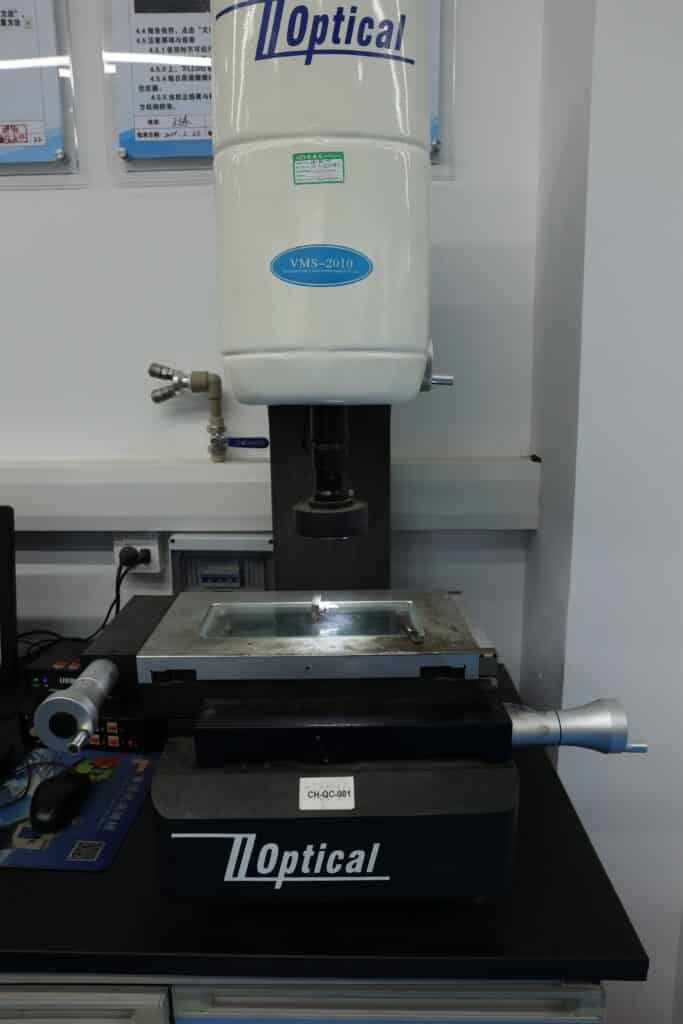

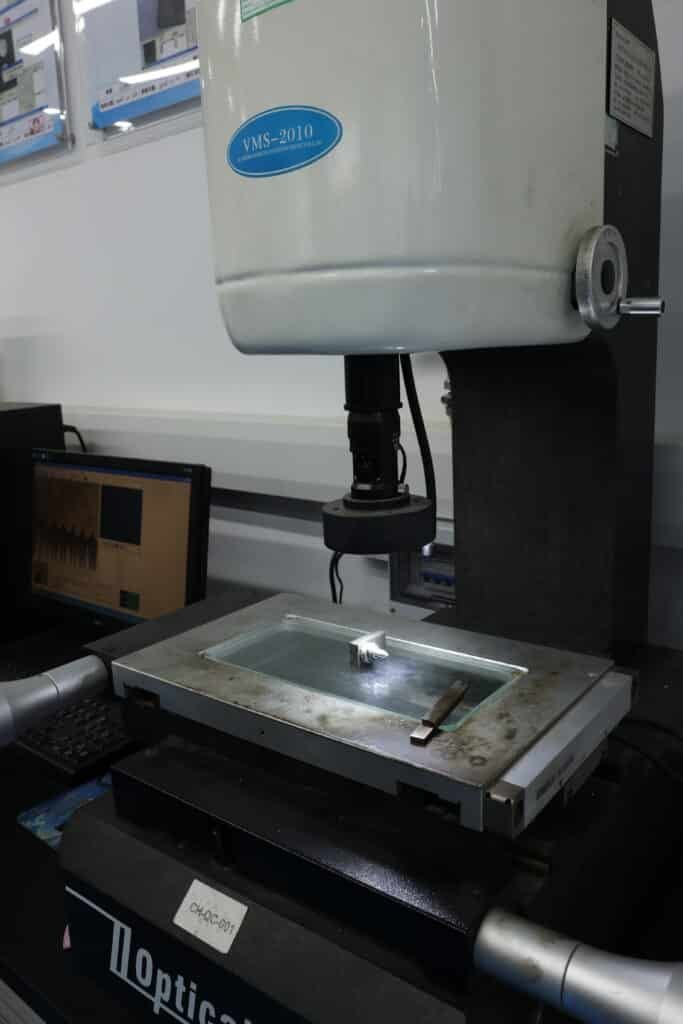

| Dimensional Inspection | CMM at ±0.001 mm; GO/NO-GO thread gauging per ISO 965 |
| Process Capability | Cpk ≥ 1.67 on critical dims; real-time SPC |
| PPAP | Level 3+ with dimensional layout, material cert, Cpk study |
KeyFixPro meets every criterion: IATF 16949 / ISO 9001 / ISO 14001 certified, with multi-station cold headers, 5-axis CNC at ±0.005 mm, AMETEK OES verification, controlled-atmosphere heat treatment, in-house metallurgical lab, CMM at ±0.001 mm, 100 % optical sorting, and 0 PPM record across 100+ programs in 20+ countries.
Frequently Asked Questions

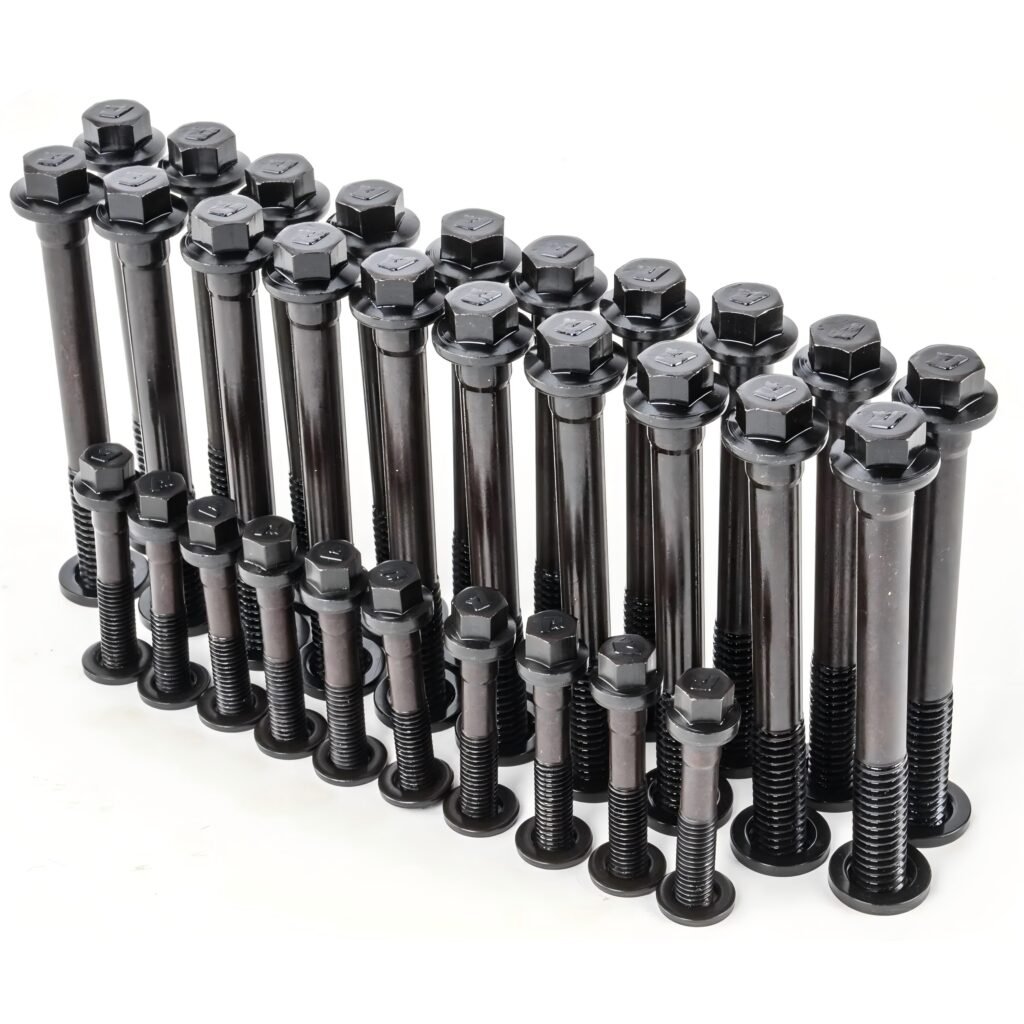

Why are most cylinder head bolts now single-use TTY?
TTY installation produces ±5 % preload scatter versus ±15–25 % with conventional torque methods. This consistency is critical for uniform gasket compression across the entire head sealing surface. Once stretched past yield, the bolt cannot return to original properties, making reuse unreliable.
What makes connecting rod bolts the most demanding engine fastener?
Con-rod bolts experience full tension-reversal twice per crankshaft revolution — accumulating 10⁸+ fatigue cycles. This demands ultra-clean steel (O₂ ≤ 15 ppm), rolled threads with compressive root stress, and class 12.9+ metallurgy — a combination only specialized automotive engine bolts China manufacturers deliver consistently.
Should engine bolts be lubricated before installation?
Yes — but only with the lubricant specified by the manufacturer (typically 30W engine oil or MoS₂ dry film). Lubrication reduces friction, allowing more applied torque to convert into bolt stretch. Wrong lubricant changes the friction coefficient and produces incorrect preload.
Can KeyFixPro produce both TTY and reusable engine bolts?
Yes. KeyFixPro’s heat-treatment controls achieve Y/T ratio 0.88–0.92 (±0.02) for TTY bolts and standard Q&T cycles for reusable class 8.8 through 12.9 engine bolts — both under the same IATF 16949 system with full PPAP documentation.
KeyFixPro — established in 2000, IATF 16949 / ISO 9001 / ISO 14001 certified — manufactures precision automotive engine bolts for OEM and Tier 1 programs across 20+ countries. With 25+ years of forging and metallurgical expertise, 50+ patents, controlled-atmosphere heat treatment, in-house metallurgical lab, and ±0.001 mm inspection, KeyFixPro delivers the material integrity and fatigue performance that modern engines demand. Visit www.keyfixpro.com or contact sales@keyfixpro.com.
