Automotive Interior Trim Screws: Precision Fastening Solutions for Modern Vehicle Assembly
Introduction: The Critical Role of Interior Trim Fasteners
Modern automotive interior design demands fastening solutions balancing functional performance with aesthetic integration, assembly efficiency, and long-term durability. Automotive interior trim screws serve as the invisible architecture securing dashboard components, door panels, center consoles, pillar trims, and seat assemblies—applications where visual appearance, acoustic performance, and vibration resistance directly impact perceived vehicle quality. According to the International Organization of Motor Vehicle Manufacturers (OICA), global vehicle production reached 85.4 million units in 2022[^1], each requiring 150-300 specialized interior fasteners representing a $2.8 billion annual market segment.
[^1]: OICA Production Statistics 2022: https://www.oica.net/category/production-statistics/
KeyFixPro, an IATF 16949 certified manufacturer established in 2000, specializes in precision-engineered interior trim fasteners serving automotive OEMs, Tier One suppliers, and aftermarket manufacturers across 20+ countries. Our 50-300 ton progressive stamping lines, 5-axis CNC machining centers, and comprehensive surface treatment capabilities produce interior screws meeting stringent automotive specifications for dimensional accuracy (±0.005mm), corrosion resistance (500+ hour salt spray), and aesthetic finishing matching vehicle interior color schemes.
This article examines technical requirements, material selections, manufacturing technologies, and quality standards defining excellence in automotive interior trim screw production—providing procurement engineers and product designers with comprehensive guidance for optimal fastener specification.
Technical Requirements for Interior Trim Screws
Automotive interior trim screws differ fundamentally from structural fasteners through emphasis on aesthetic integration, noise-vibration-harshness (NVH) performance, and assembly ergonomics versus maximum load-bearing capacity. Understanding these distinctions enables appropriate specification balancing functional requirements against cost optimization.
Interior Trim Screw Design Requirements Matrix
| Performance Category | Critical Parameters | Typical Specifications | Validation Methods |
|---|---|---|---|
| Dimensional Precision | Head diameter, thread tolerance, length accuracy | ±0.05mm head, Class 2A threads, ±0.2mm length | CMM inspection, thread gauges |
| Aesthetic Integration | Head finish, color matching, surface smoothness | Ra 0.8-1.6μm, color ΔE <2.0, no visible defects | Visual inspection, spectrophotometer |
| Vibration Resistance | Thread locking, prevailing torque, loosening resistance | 30-50% installation torque retention | DIN 65151, Junker vibration test |
| Acoustic Performance | Rattle prevention, damping characteristics | No audible noise under vibration testing | Acoustic chamber testing |
| Installation Torque | Drive system engagement, torque consistency | 2-8 Nm typical, CV <10% variation | Torque-angle monitoring |
| Corrosion Protection | Environmental durability, humidity resistance | 240-500 hours neutral salt spray | ASTM B117, ISO 9227 |
| Material Compatibility | Substrate adhesion, galvanic compatibility | No galvanic corrosion, secure thread engagement | Material compatibility testing |
Dimensional Precision proves critical for automated assembly—robotic installation systems demand consistent screw geometry enabling reliable pick-and-place operations without vision system corrections. KeyFixPro’s progressive stamping and CNC machining capabilities maintain ±0.005mm tolerance on critical dimensions, with 100% optical inspection systems examining head diameter, drive recess depth, and overall length at production speeds exceeding 300 pieces per minute.
Aesthetic Integration requirements vary by application visibility—fully visible screws (instrument panel trim, speaker grilles) demand color-matched heads coordinated with surrounding plastic surfaces, while semi-visible applications (door panel edges, under-seat mounting) prioritize functional performance over appearance. KeyFixPro offers custom color finishing through powder coating, anodizing (aluminum screws), or PVD coating achieving precise color coordination validated through spectrophotometer measurement maintaining ΔE <2.0 color difference threshold.
Vibration Resistance prevents loosening during vehicle service life—interior components experience continuous vibration from road surfaces, engine operation, and door closing impacts. Thread-locking features include nylon patches providing 30-50% prevailing torque, thread deformation creating interference fit, or micro-encapsulated adhesive activating during installation. KeyFixPro validates vibration resistance through DIN 65151 testing simulating 2000+ road cycles without measurable torque loss.

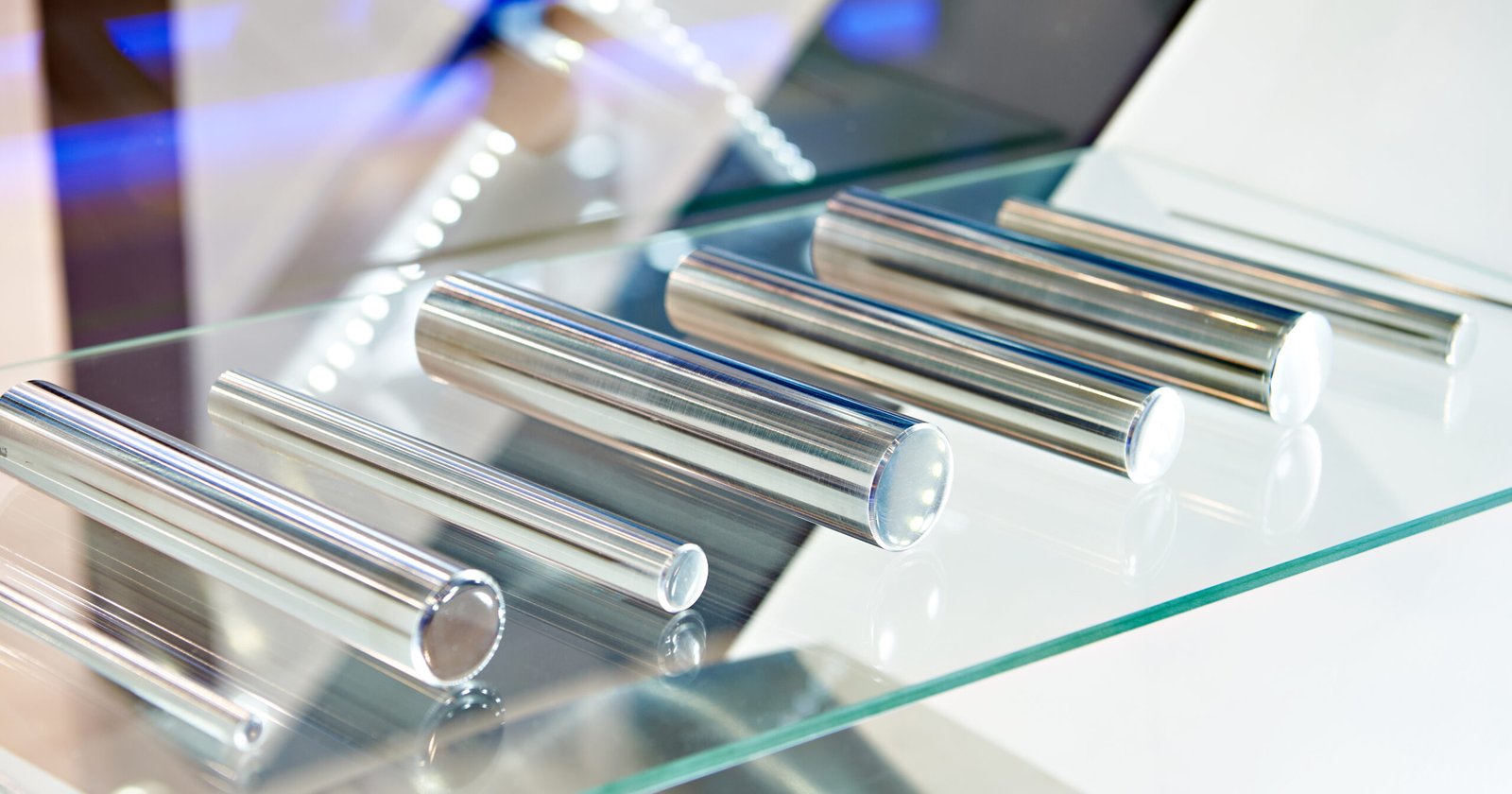

Material Selection for Interior Applications
Material choice balances mechanical requirements, corrosion protection, weight considerations, and cost constraints—automotive interior environments typically involve moderate temperature ranges (20-80°C), occasional humidity exposure, and minimal chemical contact compared to underbody or engine compartment applications.
Interior Trim Screw Material Comparison
| Material | Advantages | Limitations | Typical Applications | Surface Treatment |
|---|---|---|---|---|
| Carbon Steel (1018) | Cost-effective, good formability | Requires corrosion protection | High-volume hidden fasteners | Zinc plating, black oxide |
| Stainless Steel (304) | Corrosion resistance, no coating needed | Higher material cost | Visible trim, premium vehicles | Passivation, polishing |
| Aluminum (6061) | Lightweight (65% lighter), non-magnetic | Lower strength, thread wear concerns | Weight-critical applications, EV | Anodizing (color options) |
| Brass (C360) | Aesthetic appeal, non-magnetic, conductive | Expensive, tarnishes without coating | Decorative trim, audio equipment | Clear lacquer, nickel plating |
| Plastic (PA66, PPS) | Electrical isolation, rattle prevention | Lower strength, temperature limitations | Non-structural, electronic housings | Molded color (no coating) |
Carbon Steel Fasteners dominate cost-sensitive applications—door panel attachment, under-seat mounting, concealed structural connections where appearance matters less than functional reliability. KeyFixPro produces carbon steel interior screws with zinc-nickel plating providing 500+ hour salt spray resistance per ASTM B117, adequate for interior cabin environment exposure. Black oxide finishing offers corrosion protection with low-reflectivity appearance integrating aesthetically with black plastic trim common in modern interiors.
Stainless Steel Type 304 serves visible applications prioritizing corrosion resistance without coating—instrument cluster bezels, entertainment system mounting, door handle escutcheons. Austenitic structure provides non-magnetic characteristics preventing compass interference while natural metallic appearance complements brushed aluminum or chrome interior accents. KeyFixPro’s passivation treatment per ASTM A967 maximizes corrosion resistance, with optional bead-blasting creating uniform matte finish hiding minor machining marks.
Aluminum Alloy 6061-T6 addresses weight reduction priorities—particularly relevant for electric vehicles where every gram impacts driving range. Anodizing process creates hard oxide layer (Type II 10-25μm thickness) providing corrosion protection with color options (clear, black, bronze, blue) matching interior trim schemes. KeyFixPro maintains ±0.01mm dimensional control during aluminum machining despite material softness, through optimized cutting parameters and rigid workholding preventing deflection.
Engineering Plastics (PA66 nylon, PPS polyphenylene sulfide) provide electrical isolation preventing ground loops in electronic assemblies, acoustic damping reducing rattle potential, and chemical resistance withstanding cleaning agents. Thread-forming plastic screws cut mating threads during installation into plastic bosses—optimized point geometry and thread profile maximize pullout strength while minimizing boss stress. KeyFixPro produces custom plastic screws through precision injection molding with post-molding inspection validating dimensional accuracy and thread profile consistency.
Manufacturing Technologies for Interior Trim Screws
KeyFixPro’s integrated manufacturing capabilities span cold heading, progressive stamping, CNC machining, and specialized finishing—selecting optimal processes based on screw geometry, production volume, and material specifications.
Manufacturing Process Selection Matrix
| Manufacturing Method | Optimal Volume | Geometry Capability | Material Range | Precision | Surface Finish |
|---|---|---|---|---|---|
| Cold Heading | 50,000+ units | Round/hex heads, standard threads | Carbon steel, stainless | ±0.01mm | Ra 1.6μm typical |
| Progressive Stamping | 100,000+ units | Flat/countersunk heads, custom shapes | Steel, stainless, brass | ±0.05mm | Ra 0.8-1.6μm |
| CNC Machining | 100-10,000 units | Complex geometries, multi-diameter | All materials including exotics | ±0.005mm | Ra 0.4-1.6μm |
| Thread Rolling | All volumes | Superior thread strength, smooth finish | Ductile metals | Class 2A-3A | Ra 0.8μm |
| Thread Forming | Plastic applications | Self-tapping threads, plastic bosses | Hardened steel, stainless | ±0.02mm | Ra 1.6μm |
Progressive Stamping Operations efficiently produce flat-head and countersunk interior trim screws—multi-station dies progressively form head geometry, create drive recesses (Phillips, Torx, hex socket), and separate finished parts at rates exceeding 300 pieces per minute. KeyFixPro’s 50-300 ton Bruderer and Aida stamping presses maintain ±0.05mm dimensional control through rigid die construction, precision guide systems, and automated die temperature management preventing thermal expansion affecting dimensions.
Thread Rolling Technology creates threads 30% stronger than cut threads through cold-working process—planetary rolling systems gradually form threads through multiple die passes, particularly suitable for stainless steel and harder materials prone to work-hardening. Smooth rolled thread surfaces (Ra 0.8μm typical) reduce friction during automated assembly while improving fatigue resistance in vibration-prone interior applications. KeyFixPro operates 12 Sakamura and Chun Zu thread rolling machines configured for automotive fastener production, with statistical process control monitoring pitch diameter and thread profile consistency.

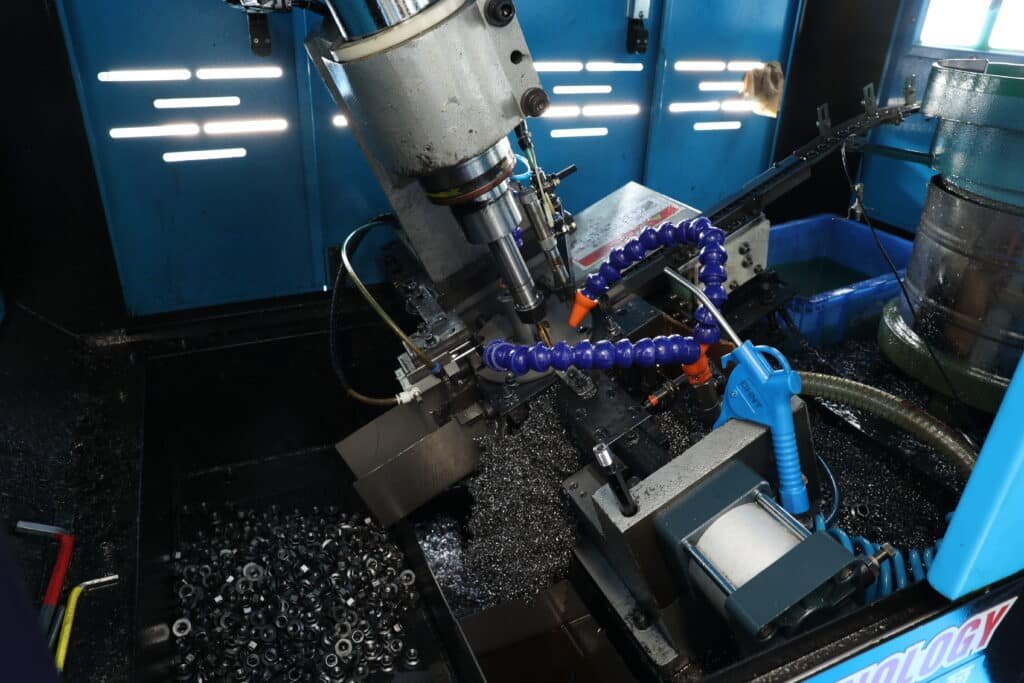

CNC Precision Machining addresses low-volume custom applications, prototype development, or complex geometries exceeding stamping capabilities—decorative screws with knurled heads, multi-diameter shanks accommodating pass-through clearances, or proprietary drive systems. KeyFixPro’s 5-axis DMG Mori and Mazak machining centers produce interior trim screws maintaining ±0.005mm tolerance on critical dimensions, with high-pressure coolant systems (1000+ psi) ensuring dimensional stability during cutting operations.
Surface Treatment and Aesthetic Finishing
Surface treatment serves dual purposes in automotive interior trim screws—functional corrosion protection ensuring long-term durability plus aesthetic finishing matching vehicle interior design themes.
Surface Treatment Options for Interior Applications
| Treatment Type | Process | Corrosion Resistance | Aesthetic Options | Typical Cost | Applications |
|---|---|---|---|---|---|
| Zinc Plating | Electroplating | 96-240 hours NSS | Clear, yellow, black chromate | Low (1.0×) | Cost-sensitive hidden fasteners |
| Zinc-Nickel | Electroplating | 500-1000 hours NSS | Silver-gray, black | Medium (2.5×) | Premium vehicles, long warranty |
| Black Oxide | Chemical conversion | Minimal (decorative) | Matte black | Low (1.2×) | Low-visibility black trim |
| Powder Coating | Electrostatic spray + cure | 500+ hours NSS | Unlimited colors, textures | Medium (2.0×) | Visible color-matched screws |
| Anodizing (Aluminum) | Electrochemical oxidation | Excellent | Clear, black, colors | Medium (2.2×) | Aluminum screws, premium finish |
| PVD Coating | Physical vapor deposition | Excellent | Gold, black, colors | High (4.0×) | Luxury vehicles, decorative |
| Passivation (Stainless) | Acid treatment | Enhanced | Natural stainless | Low (1.3×) | Stainless steel standard treatment |
Zinc-Nickel Electroplating provides optimal balance between corrosion protection and cost for interior applications—8-12μm coating thickness achieves 500-1000 hour neutral salt spray resistance per ASTM B117, adequate for interior cabin exposure including occasional humidity and temperature cycling. KeyFixPro operates automated zinc-nickel plating lines with thickness monitoring ensuring uniform coverage, particularly on threaded sections where coating buildup potentially affects assembly torque.
Powder Coating Technology enables precise color matching to interior plastic trim—spectrophotometer analysis of target surfaces guides powder formulation achieving ΔE <2.0 color difference. Electrostatic application followed by 180-200°C cure creates 40-80μm coating thickness providing excellent chip resistance and UV stability. KeyFixPro maintains library of 200+ standard automotive interior colors with custom color matching available for minimum order quantities of 5,000 pieces.
PVD (Physical Vapor Deposition) Coating serves luxury vehicle applications demanding premium metallic finishes—titanium nitride creating gold appearance, chromium nitride producing silver-chrome finish, or diamond-like carbon (DLC) delivering black with extreme hardness (2000+ HV). Coating thickness of 1-5μm maintains dimensional precision while providing corrosion protection and wear resistance. KeyFixPro collaborates with certified PVD coating partners ensuring adhesion, color consistency, and hardness meeting automotive specifications.
Drive System Selection for Assembly Optimization
Drive system choice profoundly impacts assembly efficiency, tool life, and screw aesthetics—interior applications typically prioritize camout resistance during high-speed automated installation plus aesthetic appearance when visible.
Drive System Comparison for Interior Assembly
| Drive Type | Torque Capacity | Camout Resistance | Tool Life | Aesthetic Appeal | Best Applications |
|---|---|---|---|---|---|
| Phillips | Medium | Fair (prone to camout) | Moderate | Traditional appearance | Cost-sensitive, manual assembly |
| Torx (6-lobe) | Very High | Excellent | Excellent | Modern technical look | Automated assembly, high torque |
| Hex Socket | High | Excellent | Very Good | Clean minimal appearance | Visible fasteners, premium feel |
| Quadrex (square) | High | Very Good | Good | Functional appearance | Canadian/industrial preference |
| Tri-Wing | Medium | Good | Good | Tamper-resistant look | Security applications, OEM-specific |
| Pentalobe | Medium | Very Good | Good | Apple-style aesthetic | Consumer electronics-inspired interiors |
Torx Drive Systems dominate modern automotive interior assembly—six-lobe profile provides superior torque transmission with minimal camout risk during automated installation. T15, T20, T25 sizes accommodate 3-8 Nm torque ranges typical for interior trim attachment. KeyFixPro produces Torx interior screws through precision cold-heading forming drive recesses to ±0.01mm depth tolerance, with secondary broaching operations when geometry demands tighter tolerances. Statistical sampling validates engagement depth consistency enabling reliable robotic assembly without vision-guided correction.
Hex Socket Drives suit visible applications where clean, modern aesthetic matters—instrument panel trim, center console bezels, door handle surrounds. Flush or low-profile button head designs minimize protrusion while providing adequate wrench engagement. KeyFixPro offers socket depths optimized preventing excessive recess depth that weakens head integrity while ensuring minimum 1.5× across-flats engagement length recommended by ASME standards.
Quality Assurance for Interior Trim Screws
Automotive interior fastener applications demand comprehensive quality validation ensuring dimensional consistency, finish quality, and functional performance throughout production runs.
KeyFixPro Quality Control Systems
| Inspection Category | Equipment/Method | Parameters | Frequency | Acceptance Criteria |
|---|---|---|---|---|
| Dimensional Verification | Keyence vision systems, CMM | Head diameter, length, thread pitch diameter | 100% automated + hourly CMM | ±0.05mm on dimensions |
| Surface Quality | Visual inspection (6× magnification) | Finish uniformity, color consistency, defects | 100% visual + spectrophotometer sampling | No visible defects, ΔE <2.0 |

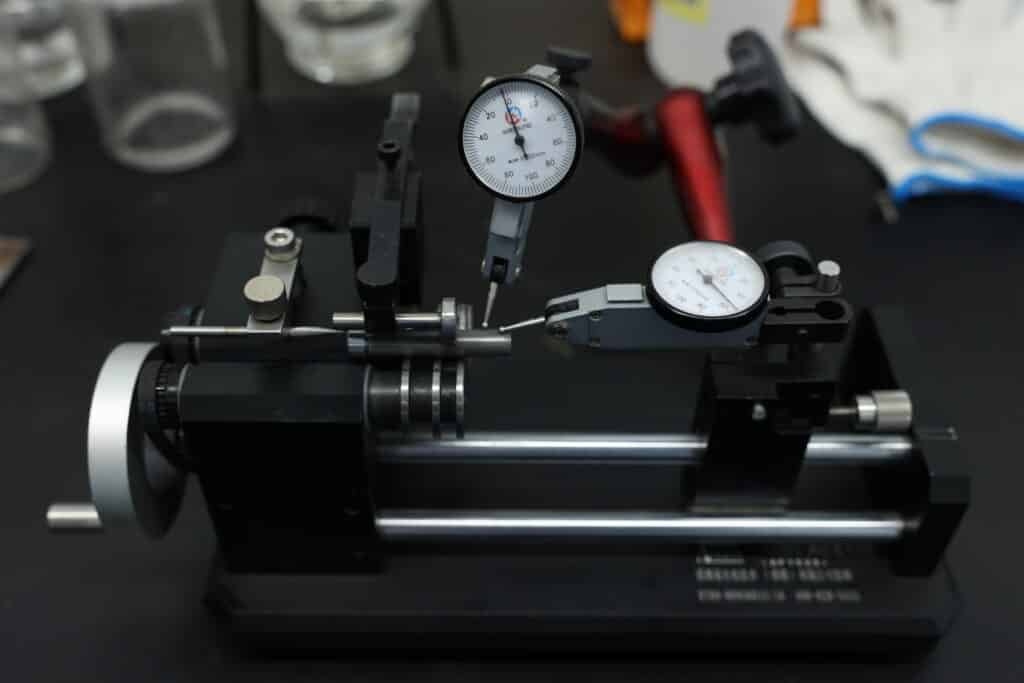

| Thread Inspection | Thread plug gauges, optical comparator | Major/minor diameter, thread profile | First article + 2% statistical sampling | Class 2A tolerance (ASME B1.1) |
| Coating Thickness | X-ray fluorescence, magnetic induction | Plating thickness uniformity | 5% of production batches | 8-12μm zinc-nickel specification |
| Torque Performance | Automated torque-angle testing | Installation torque, prevailing torque | Sample testing per production shift | 2-8 Nm ±15% specification |
| Vibration Resistance | Junker test, DIN 65151 | Torque retention after vibration | New design validation + periodic | >70% torque retention after 2000 cycles |
| Salt Spray Corrosion | ASTM B117 chambers | Hours to red rust appearance | Per coating batch | 500+ hours for zinc-nickel |
Automated Optical Inspection systems examine 100% of production through high-resolution cameras integrated into manufacturing cells—vision algorithms detect dimensional variations (±0.01mm sensitivity), surface defects (scratches, dents, coating irregularities), and drive recess defects (damaged lobes, insufficient depth). KeyFixPro’s Keyence CV-X series systems achieve inspection speeds matching production rates (300+ parts per minute) with automatic rejection triggering when defects exceed programmed thresholds.
Statistical Process Control (SPC) monitors critical dimensions in real-time—head diameter, overall length, and thread pitch diameter plotted on X-bar and R control charts with automated alerts when measurements trend toward specification limits. Process capability studies demonstrate Cpk >1.67 on critical dimensions, statistically confirming manufacturing stability and defect rates below 63 parts per million (Six Sigma quality level).
PPAP Documentation (Production Part Approval Process) for automotive OEM customers includes comprehensive validation: dimensional inspection reports with actual measurements, material certificates from steel mills, coating thickness verification, torque-tension characterization, salt spray test results, and process flow diagrams with control plans. KeyFixPro maintains IATF 16949:2016 certification demonstrating capability producing automotive-grade fasteners meeting stringent OEM requirements.
Application-Specific Interior Trim Screw Solutions
Different interior components impose distinct fastener requirements affecting material selection, drive systems, and finish specifications.
Interior Application Requirements Matrix
| Interior Component | Typical Screw Specs | Critical Features | Material Selection | Finish Requirements |
|---|---|---|---|---|
| Dashboard/IP Assembly | M4-M6 × 12-20mm, Torx drive | Vibration resistance, aesthetic integration | Stainless 304 or zinc-nickel steel | Color-matched powder coat or black |
| Door Panels | M5-M6 × 16-25mm, thread-forming | High pullout in plastic, corrosion protection | Carbon steel with coating or stainless | Black oxide or zinc-nickel |
| Center Console | M4-M5 × 10-16mm, hex socket | Low-profile heads, visible quality | Stainless or aluminum | Polished, anodized, or PVD |
| Seat Assemblies | M6-M8 × 20-35mm, hex head | High strength, long engagement | Grade 8.8 steel | Zinc-nickel or phosphate + oil |
| Pillar Trim | M5-M6 × 16-20mm, Torx | Quick assembly, rattle prevention | Steel with thread-lock patch | Black or color-matched |
| Speaker Grilles | M4 × 8-12mm, Phillips or Torx | Aesthetic appearance, acoustic sealing | Stainless or plastic | Color-matched to grille |
| Overhead Console | M4-M5 × 12-16mm, low-profile | Minimal protrusion, lightweight | Aluminum or stainless | Anodized or passivated |
Dashboard Assembly Applications demand non-magnetic materials preventing compass interference—austenitic stainless steel (304, 316) or aluminum alloys avoid magnetic signature affecting vehicle navigation systems. Thread-locking patches provide vibration resistance without maintenance concerns, while color-matched powder coating integrates aesthetically with injection-molded plastic dashboard surfaces. KeyFixPro produces dashboard fasteners maintaining ±0.005mm dimensional tolerance enabling automated robotic assembly without pick-and-place errors.
Door Panel Fasteners utilize thread-forming screws creating mating threads during installation into plastic bosses—Type F (machine screw threads with sharp point) or Type BF (dog point with blunt tip) optimized for ABS, PC/ABS, or glass-fiber reinforced plastic door panel structures. Thread geometry features 30° flank angle and optimized pitch reducing installation torque while maximizing pullout resistance. KeyFixPro validates thread-forming performance through empirical testing in customer-supplied materials, documenting installation torque, stripping torque, and pullout strength.
Seat Assembly Connections require higher strength grades (Grade 8.8 minimum, 10.9 for structural connections) accommodating occupant loading and crash safety requirements. Larger diameters (M6-M8) with extended thread engagement (minimum 1.5× diameter per VDI 2230 guidelines) ensure structural integrity. Zinc-nickel coating or phosphate plus oil treatment provides corrosion protection adequate for under-seat environment experiencing occasional moisture from wet shoes or spilled beverages.
Supplier Selection Criteria: KeyFixPro Advantages
Choosing an automotive interior trim screws manufacturer requires evaluating technical capabilities, quality systems, and automotive industry experience beyond simple price comparisons.
KeyFixPro Competitive Advantages
| Selection Factor | Industry Standard | KeyFixPro Capability | Customer Benefit |
|---|---|---|---|
| Automotive Certification | ISO 9001 minimum | IATF 16949:2016 + ISO 14001 | OEM-qualified supplier status |
| Manufacturing Precision | ±0.1mm typical | ±0.005mm CNC, ±0.05mm stamping | Automated assembly compatibility |
| Production Flexibility | 10,000+ MOQ | 1,000-5,000 MOQ for custom | Prototype to production scaling |
| Material Range | Steel, stainless only | Steel, stainless, aluminum, brass, plastic | Complete material versatility |
| Color Matching | Limited standard colors | 200+ standard colors + custom matching | Precise aesthetic integration |
| Lead Time | 8-12 weeks | 4-6 weeks production, 10 days samples | Faster development cycles |
| Engineering Support | Order processing only | DFM analysis, testing validation, PPAP | Value-added technical partnership |
| Global Experience | Regional suppliers | 100+ projects, 20+ countries, OEM references | Proven automotive supply capability |
IATF 16949:2016 Certification demonstrates KeyFixPro’s capability meeting automotive industry quality requirements—advanced product quality planning (APQP), production part approval process (PPAP), failure mode effects analysis (FMEA), measurement system analysis (MSA), and statistical process control (SPC). Annual TÜV Rheinland surveillance audits validate continuous compliance with automotive quality management standards ensuring consistent performance throughout multi-year production programs.
Engineering Collaboration Services differentiate KeyFixPro from transactional suppliers—Design for Manufacturability (DFM) analysis identifies cost reduction opportunities through material optimization or process consolidation, torque-tension characterization guides joint design and assembly specifications, vibration testing validates thread-locking effectiveness before production tooling investment. Dedicated account managers coordinate multi-functional teams (engineering, quality, production, logistics) ensuring responsive communication throughout product lifecycle.
Conclusion: Precision Interior Fastening Solutions
Automotive interior trim screws represent critical components affecting perceived vehicle quality through aesthetic integration, acoustic performance, and long-term durability. Material selection balancing cost, corrosion protection, and weight considerations—manufacturing precision enabling automated assembly—comprehensive surface finishing matching interior design themes—these factors collectively determine fastener suitability for demanding automotive applications.
KeyFixPro’s 24-year specialization in precision fastener manufacturing combines IATF 16949 certified quality systems, advanced manufacturing technologies (progressive stamping, 5-axis CNC, automated finishing), comprehensive material capabilities (carbon steel through exotic alloys), and automotive engineering expertise serving global OEMs and Tier suppliers. Our ±0.005mm dimensional precision, 100% automated optical inspection, and extensive color-matching capabilities address aesthetic and functional requirements across dashboard assemblies, door panels, center consoles, and seat structures.
Contact KeyFixPro’s automotive engineering team to discuss your interior trim screw requirements. We provide complimentary DFM analysis optimizing designs for cost-effective manufacturing, sample parts demonstrating precision capabilities and finish quality, comprehensive PPAP documentation supporting OEM qualification, and responsive technical support throughout development and production phases. Request our automotive interior fastener catalog featuring 500+ standard configurations with complete dimensional specifications, material options, and finish alternatives—or collaborate on custom solutions tailored to your specific vehicle platform requirements.
