Automotive screw machine parts are precision-turned components manufactured on CNC and Swiss-type screw machines to exacting tolerances for vehicle applications. These specialized parts include fasteners, bushings, pins, shafts, spacers, and complex turned components essential to modern automotive manufacturing. As an IATF 16949 certified China manufacturer, Keyfix delivers precision automotive screw machine parts engineered for demanding automotive applications worldwide.
Product Introduction: Automotive Screw Machine Parts Explained
Understanding Screw Machine Manufacturing
Screw machine manufacturing is a precision turning process that produces cylindrical parts with tight tolerances, complex geometries, and excellent surface finishes. The term “screw machine” originated from early automatic lathes but now encompasses modern CNC turning centers and Swiss-type machines capable of producing intricate automotive components.
Automotive screw machine parts must meet stringent requirements including dimensional tolerances of ±0.01mm to ±0.05mm, superior surface finishes for friction reduction and assembly, material consistency for reliable performance, high-volume repeatability for automotive production, and compliance with automotive quality standards.
Why Choose Custom Automotive Screw Machine Parts?
While standard turned parts serve many applications, automotive manufacturing often demands specifications beyond catalog offerings. Custom manufacturing from a specialized China automotive parts factory allows you to specify exact dimensions for precise fits and clearances, custom materials for strength and environmental resistance, complex geometries not available as standard parts, integrated features reducing assembly operations, specialized surface treatments for performance, and cost optimization through design for manufacturability.
Modern vehicles incorporate thousands of precision-turned components in engines, transmissions, fuel systems, braking systems, and chassis assemblies. Custom screw machine parts ensure optimal performance without design compromises.
Manufacturing Technologies
CNC Turning Centers provide precision for complex automotive components, offering multi-axis capability for intricate geometries, tight tolerances of ±0.01mm or better, live tooling for secondary operations, and high-volume production capacity. CNC turning produces shafts, bushings, spacers, and custom fasteners.
Swiss-Type Screw Machines excel at small-diameter precision parts, featuring superior concentricity and roundness, exceptional length-to-diameter ratios, minimal deflection for tight tolerances, and high-speed production. Swiss machines produce fuel injector components, sensor parts, and miniature precision pins.
Secondary Operations integrate additional processes including thread rolling for superior thread strength, cross-drilling and milling for complex features, heat treatment for optimized properties, and surface finishing for enhanced performance.
Material Selection
Carbon Steel (1018, 1045, 12L14) provides good machinability for cost-effective production, adequate strength for many applications, heat treatment capability, and compatibility with various coatings. Carbon steel serves general automotive screw machine parts with appropriate surface protection.
Stainless Steel (303, 304, 316, 416) offers excellent corrosion resistance for harsh environments, good machinability in free-machining grades, attractive appearance, and no coating requirements. Stainless steel serves fuel systems, brake components, and exterior applications.
Alloy Steel (4140, 8620) delivers high strength for critical applications, superior wear resistance, excellent fatigue properties, and heat treatment capability for optimized hardness. Alloy steel serves transmission components, engine parts, and high-stress applications.
Brass and Bronze provide excellent machinability, good corrosion resistance, self-lubricating properties for bearing applications, and electrical conductivity. Brass serves electrical connectors, bushings, and fluid fittings.
Aluminum Alloys (6061, 7075, 2024) offer significant weight reduction, good strength-to-weight ratio, excellent corrosion resistance, and good machinability. Aluminum serves lightweight components in modern fuel-efficient vehicles.
Popular Specifications for Automotive Screw Machine Parts
Common Automotive Screw Machine Components
Precision Shafts and Pins serve transmission components, adjustment mechanisms, sensor mounting, and control linkages. Specifications include diameters from 1mm to 50mm, lengths up to 300mm, tolerances of ±0.01mm to ±0.02mm, and surface finishes to Ra 0.8μm or better.

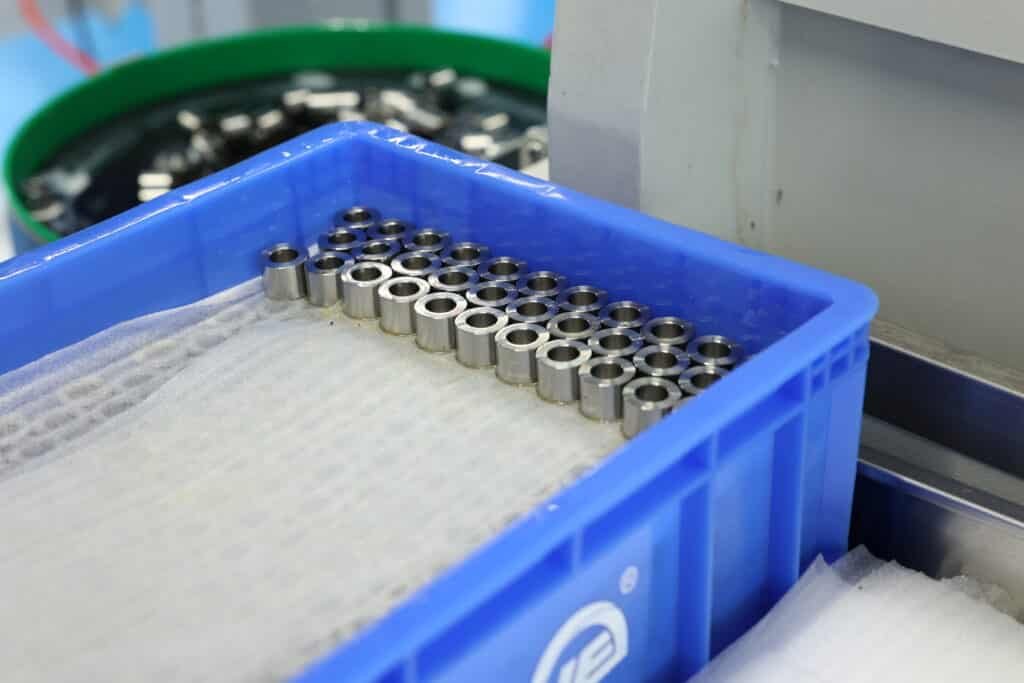

Bushings and Spacers provide bearing surfaces, alignment, and precise spacing in chassis components, suspension systems, steering assemblies, and engine mounts. Requirements include precise bore and OD dimensions, tight concentricity tolerances, specific length dimensions, and wear-resistant materials.

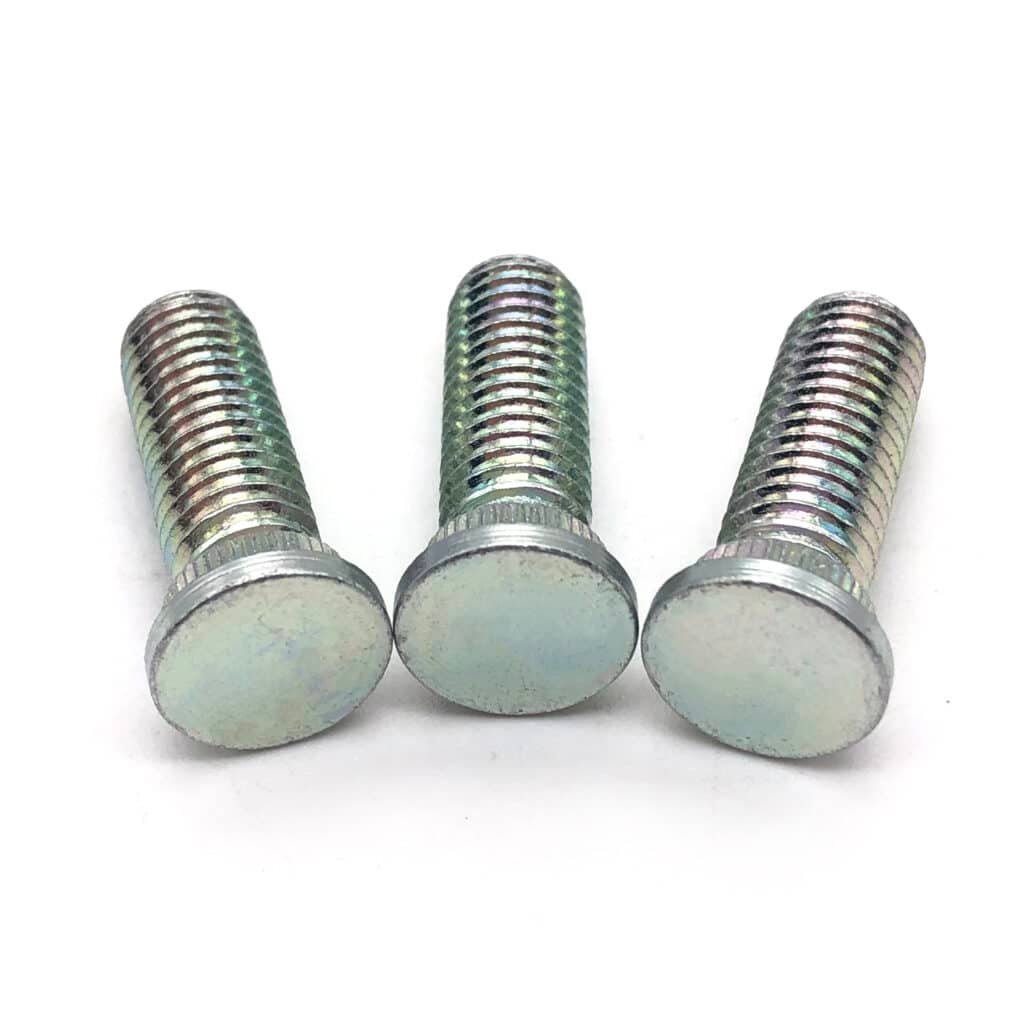

Custom Fasteners including shoulder bolts, specialty screws, threaded studs, and custom nuts serve unique automotive assembly requirements with non-standard dimensions, integrated features reducing part count, and optimized materials for specific applications.
Fuel System Components such as injector parts, pump components, valve bodies, and pressure regulators demand extreme precision, corrosion resistance, and consistency across production volumes.
Brake System Parts including caliper pins, adjustment screws, bleeder valves, and mounting studs require high strength, precise dimensions for safety, corrosion resistance, and complete traceability.
Dimensional Tolerances and Surface Finishes
Automotive screw machine parts typically achieve diameter tolerances of ±0.01mm to ±0.05mm depending on size and application, length tolerances of ±0.05mm to ±0.1mm, concentricity within 0.02mm TIR, and surface finishes from Ra 0.4μm to Ra 3.2μm based on functional requirements.
Thread Specifications
Thread capabilities include metric threads from M2 to M24, imperial threads from #2-56 to 1″, fine and coarse pitch options, thread tolerances to 6g/6h (metric) or 2A/2B (imperial), and thread rolling for enhanced strength and fatigue resistance.
Surface Treatments
Automotive environments require robust surface protection including zinc plating (clear, yellow, black) for economical corrosion resistance, zinc-flake coating (Geomet, Dacromet) for superior underbody protection, black oxide for aesthetics and mild protection, nickel plating for enhanced corrosion resistance, heat treatment for optimized hardness, and passivation for stainless steel components.
Applications: Where Automotive Screw Machine Parts Excel
Engine and Powertrain Components
Engine applications include valve stem components, timing system parts, oil pump components, crankshaft and camshaft elements, and sensor mounting hardware. Requirements demand high-temperature resistance, wear resistance for moving parts, precise tolerances for performance, and material compatibility with oils and fuels.
Transmission and Drivetrain Parts
Transmission applications serve shift mechanism components, valve body parts, clutch system elements, differential components, and CV joint parts. Requirements include high strength for torque transmission, precision dimensions for smooth operation, heat treatment for wear resistance, and fatigue resistance for cyclic loading.
Fuel System Components
Fuel system parts include injector components, pump elements, pressure regulator parts, fuel line fittings, and valve assemblies. Requirements emphasize corrosion resistance for fuel exposure, precision for proper fuel delivery, high-volume consistency, and compliance with emissions standards.
Brake and Safety Systems
Brake applications include caliper pins and bushings, adjustment mechanism parts, hydraulic system components, ABS sensor mounting, and master cylinder elements. Requirements prioritize absolute reliability for safety, precise tolerances for proper function, corrosion resistance preventing seizure, and complete material traceability.
Chassis and Suspension Components
Chassis applications serve suspension bushings and spacers, steering system parts, wheel bearing components, subframe mounting elements, and linkage pins. Requirements include high strength for load-bearing, fatigue resistance for constant cycling, corrosion resistance for underbody exposure, and precise dimensions for suspension geometry.
Electrical and Sensor Mounting
Electrical applications include sensor mounting studs, connector pins and terminals, grounding studs and bushings, ECU mounting hardware, and battery terminal components. Requirements demand precise dimensions for proper grounding, corrosion resistance for electrical reliability, non-magnetic materials when necessary, and conductive materials for grounding applications.
Frequently Asked Questions
What is the difference between CNC turning and Swiss-type screw machining?
CNC turning holds workpieces from the chuck and uses tools to remove material, ideal for larger diameters and shorter parts. Swiss-type machines support workpieces through a guide bushing near the cutting tool, allowing minimal deflection for small-diameter, long parts with tight tolerances. Swiss machines excel at parts under 32mm diameter with high length-to-diameter ratios, while CNC turning handles larger diameters and more complex features.
What tolerances can you achieve for automotive screw machine parts?
We routinely achieve diameter tolerances of ±0.01mm to ±0.02mm on critical dimensions, length tolerances of ±0.05mm, concentricity within 0.02mm TIR, and surface finishes to Ra 0.4μm. For ultra-precision applications, we can achieve tighter tolerances of ±0.005mm on critical features. All tolerances are maintained through statistical process control throughout production.
Do your automotive screw machine parts meet IATF 16949 requirements?
Yes, Keyfix maintains IATF 16949 certification specifically for automotive manufacturing. Our quality management system ensures rigorous process controls, statistical process control (SPC), complete traceability from raw material through finished parts, PPAP documentation capability, and compliance with customer-specific requirements. We regularly supply Tier 1 and Tier 2 automotive suppliers globally.
What are minimum order quantities?
For prototypes and new product development, we can produce as few as 500-1,000 pieces for testing and validation. Production orders typically start at 5,000-10,000 pieces depending on complexity and setup requirements. We work with automotive manufacturers to establish economical supply agreements for ongoing production including kanban and VMI programs.
How long does production take for automotive screw machine parts?
For new parts, prototype development takes 2-3 weeks including programming and first article inspection. Initial production runs require 3-5 weeks for setup and quality validation. Once established, repeat orders are fulfilled in 2-4 weeks depending on quantity. We maintain strategic inventory for high-volume customers to support just-in-time delivery requirements.
Can you provide PPAP documentation?
Absolutely. As an IATF 16949 certified manufacturer, we provide complete Production Part Approval Process (PPAP) documentation including dimensional inspection reports with measured values, material certifications and test results, process flow diagrams and control plans, FMEA documentation, and customer-specific requirement compliance. We have extensive experience with PPAP submissions to major automotive OEMs.
Keyfix: Your Trusted China Automotive Screw Machine Parts Factory and Manufacturer
IATF 16949 Certified Automotive Manufacturer Since 2007
Established in 2007, Keyfix is a specialized China automotive screw machine parts manufacturer serving global automotive OEMs, Tier 1 suppliers, and Tier 2 suppliers. With IATF 16949 certification and nearly two decades of precision manufacturing expertise, we consistently deliver quality automotive screw machine parts meeting stringent automotive requirements.
Advanced Screw Machine Manufacturing Capabilities

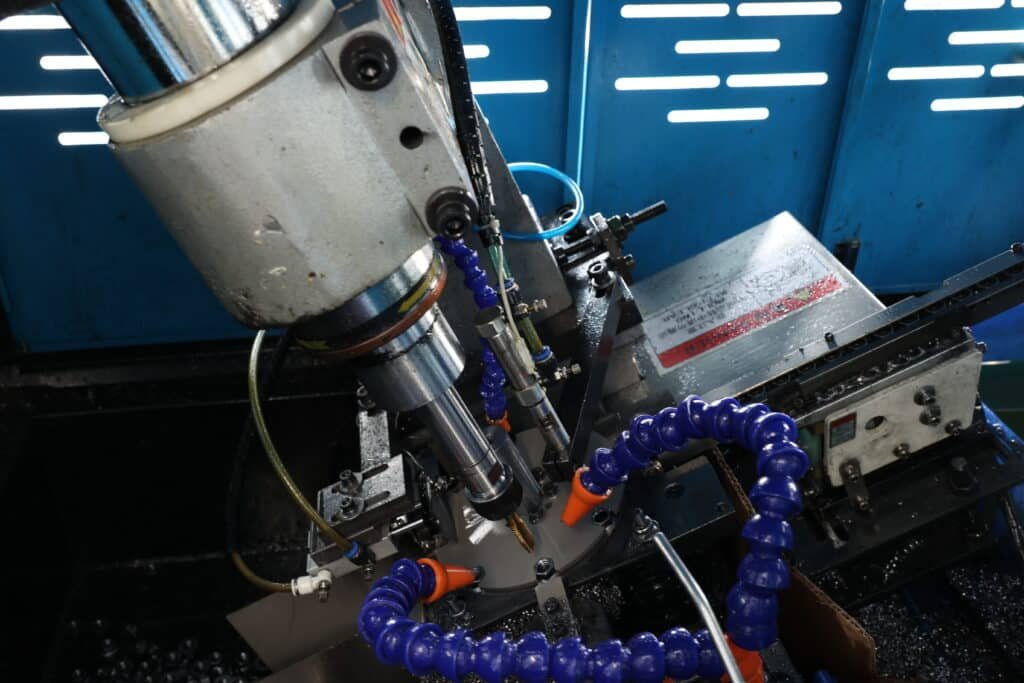

Our China factory features precision CNC turning centers with live tooling capability, Swiss-type screw machines for miniature precision parts, multi-axis machining for complex geometries, thread rolling equipment for superior threads, heat treatment facilities with automated controls, and comprehensive inspection systems including CMM measurement and SPC monitoring.
Automotive Quality Systems and Engineering Support
Beyond IATF 16949 certification, we maintain PPAP documentation and submission capability, APQP processes for new product development, control plans and FMEA documentation, dimensional and material testing laboratories, and automotive quality engineers experienced in OEM requirements. Our engineering team provides design for manufacturability analysis, material selection optimization, tolerance analysis and capability studies, cost reduction through process optimization, and ongoing technical support.
Global Automotive Supply Chain Experience
With extensive experience supplying the automotive industry worldwide, we understand just-in-time delivery schedules, kanban and VMI inventory programs, EDI integration and electronic communication, automotive packaging and labeling standards, and global logistics coordination. We maintain strategic inventory ensuring uninterrupted supply to automotive production lines.
Start Your Automotive Screw Machine Parts Project Today
Whether you’re developing new vehicle platforms, optimizing current production, requiring a qualified automotive supplier, or seeking cost reduction without compromising quality, Keyfix delivers the precision and reliability your automotive applications demand.
Contact us with your drawings and specifications. Our automotive engineering team will provide design recommendations, material selection guidance, and comprehensive quotations. We’ll develop prototypes with full dimensional inspection, support PPAP submission, and establish reliable production supply with quality documentation.
Visit our website at https://keyfixpro.com/ to learn more about our automotive screw machine parts manufacturing capabilities and connect with our automotive team.
Contact Keyfix today—your trusted IATF 16949 certified China automotive screw machine parts manufacturer for precision, quality, and reliability.
