Shoulder screws, also known as shoulder bolts or stripper bolts, are precision fasteners featuring an unthreaded cylindrical shoulder between the head and threaded portion. These specialized components serve as precision pivot points, rotating shafts, and mounting hardware in applications requiring exact clearances and smooth rotation. When standard shoulder screws cannot meet your specific requirements, custom manufacturing from a specialized China factory becomes essential. Keyfix delivers precision custom shoulder screws engineered to your exact specifications.
Product Introduction: Custom Shoulder Screws Explained
Understanding Shoulder Screw Design

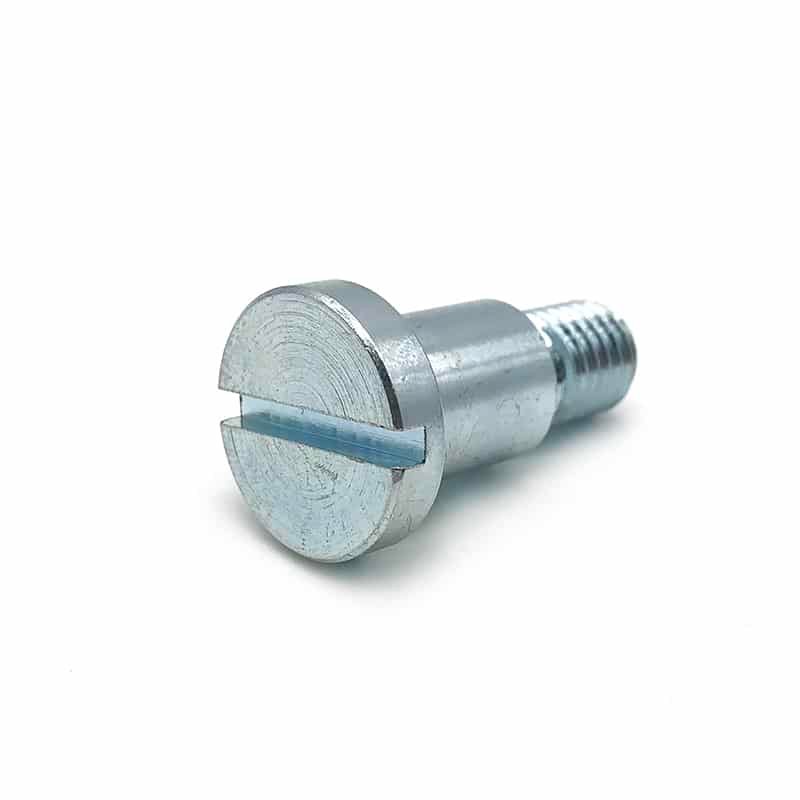

Shoulder screws are unique fasteners characterized by three distinct sections: a head (typically socket head or button head), a precision-ground shoulder with tight diameter tolerance, and a threaded portion for secure attachment. The shoulder serves as a precision bearing surface or axle, while the threads provide clamping force without interfering with the shoulder’s function.
Unlike standard screws where the entire shank is threaded, the shoulder screw’s unthreaded cylindrical section allows components to rotate freely around it or maintains precise spacing between parts. The shoulder diameter is manufactured to tight tolerances, typically ±0.01mm or better, ensuring consistent performance in precision assemblies.
Why Choose Custom Shoulder Screws?
Standard shoulder screws are available in limited combinations of shoulder diameter, shoulder length, and thread size. Custom manufacturing from a China custom shoulder screws factory allows you to specify exact shoulder diameter for precise bearing fit, custom shoulder length for specific spacing requirements, unique thread specifications and engagement length, specialized materials for strength or environmental resistance, custom head styles for specific tooling or clearance needs, and surface treatments optimized for your application.
Industries requiring precision motion control, automated machinery, medical devices, and aerospace assemblies often need shoulder screws with specifications beyond standard catalog offerings. Custom manufacturing ensures optimal performance without design compromises.
Manufacturing Technologies
Keyfix employs precision manufacturing technologies specifically suited for shoulder screw production.
CNC Machining is the primary method for custom shoulder screws, providing the precision required for shoulder diameter tolerances of ±0.005mm to ±0.01mm, exact shoulder length control, complex head geometries, and compatibility with exotic materials including stainless steel, titanium, and specialty alloys. CNC turning and grinding operations produce the precision shoulders essential for proper shoulder screw function.
Precision Grinding is critical for achieving the tight tolerances on shoulder diameter and superior surface finish required for bearing surfaces. Centerless grinding produces consistent diameter along the entire shoulder length with exceptional roundness and minimal surface roughness.
Thread Rolling creates stronger threads than cutting by work-hardening the material, improving fatigue resistance for applications with cyclic loading, and providing precise thread dimensions. Thread rolling is particularly beneficial for shoulder screws in high-stress applications.
Material Selection
Material choice impacts shoulder screw performance, wear resistance, and environmental compatibility.
Alloy Steel provides exceptional strength for high-load applications, excellent wear resistance on shoulder bearing surfaces, and heat treatment capability for optimized hardness. Alloy steel shoulder screws serve heavy machinery, automotive assemblies, and industrial equipment.
Stainless Steel (304, 316, 17-4 PH) offers outstanding corrosion resistance for harsh environments, good strength characteristics, non-magnetic properties when required, and FDA compliance for food and medical applications. Stainless steel custom shoulder screws are essential for medical devices, food processing equipment, and marine applications.
Aluminum Alloys deliver lightweight solutions for weight-critical applications, good corrosion resistance, ease of machining for complex features, and non-magnetic properties. Aluminum shoulder screws serve aerospace components, portable equipment, and applications where weight reduction is paramount.
Titanium provides exceptional strength-to-weight ratio, outstanding corrosion resistance, biocompatibility for medical implants, and performance in extreme temperatures. While more expensive, titanium shoulder screws are critical for aerospace and medical applications.
Brass offers good corrosion resistance, electrical conductivity, attractive appearance, and excellent machinability. Brass shoulder screws find use in electrical components and decorative applications.
Popular Specifications for Custom Shoulder Screws
Shoulder Diameter and Length
Shoulder Diameters commonly range from 3mm to 25mm (or 1/8″ to 1″ imperial), with precision tolerances of ±0.005mm to ±0.01mm depending on application requirements. Custom diameters outside these ranges are available for specialized applications. The shoulder is typically precision-ground to ensure consistent diameter and smooth surface finish.
Shoulder Lengths vary from as short as 3mm to over 100mm depending on spacing or bearing requirements. Common lengths range from 5mm to 50mm, with custom lengths available in 0.1mm increments for precise spacing control.
Thread Specifications
Thread sizes are selected based on required clamping force and must be smaller than shoulder diameter. Common metric threads include M3, M4, M5, M6, M8, and M10, while imperial threads include #6-32, #8-32, #10-32, 1/4″-20, 5/16″-18, and 3/8″-16. Thread lengths typically range from 6mm to 30mm, customizable to your specific engagement requirements.
Head Styles
Socket Head is the most common style, featuring a cylindrical head with hexagonal socket drive, low-profile design, and high torque capability. Socket head shoulder screws are ideal for applications with limited clearance and high installation torque requirements.
Button Head provides a rounded, lower-profile alternative with reduced socket depth, attractive appearance, and adequate torque capability for most applications. Button head shoulder screws are popular in visible applications and assemblies requiring minimal head protrusion.
Flat Head (Countersunk) allows flush or sub-flush mounting when the head must be recessed, featuring angled underhead for countersunk holes. Countersunk shoulder screws serve applications requiring smooth surfaces or aerodynamic considerations.
Low Head offers the most minimal profile for severely space-constrained applications while maintaining adequate drive capability.
Surface Treatments and Hardness
Surface treatments enhance performance and longevity. Options include black oxide for mild corrosion resistance and attractive appearance, zinc plating for economical corrosion protection, nickel plating for enhanced corrosion resistance, hard anodizing for aluminum alloys to improve wear resistance, passivation for stainless steel to maximize corrosion resistance, and specialty coatings like Teflon or dry film lubricants for reduced friction.
Heat treatment can optimize shoulder hardness for wear resistance while maintaining thread ductility. Typical shoulder hardness ranges from HRC 45-55 for general applications to HRC 58-62 for maximum wear resistance.
Applications: Where Custom Shoulder Screws Excel
Automated Machinery and Robotics
Shoulder screws serve as precision pivot points in robotic arms and automated systems, linear motion guides and bearings, timing belt idlers and pulleys, and linkage assemblies requiring accurate spacing. Custom shoulder screws for automation feature precision-ground shoulders for smooth rotation, specified clearance fits with mating components, hardened surfaces for wear resistance, and corrosion protection for various environments.
Medical Devices and Surgical Instruments
Medical applications demand exceptional precision and cleanliness. Custom shoulder screws serve surgical instruments requiring precise pivot points, diagnostic equipment assemblies, patient positioning systems, and implantable devices. Medical shoulder screws require biocompatible materials (titanium, 316L stainless steel), precision tolerances for reliable operation, smooth surfaces for sterilization compatibility, and complete material traceability.
Aerospace and Defense
Aerospace applications require the highest quality standards with shoulder screws serving aircraft control linkages, satellite deployment mechanisms, precision instrumentation, and aerospace tooling. Aerospace shoulder screws feature lightweight materials with high strength, complete material certification and traceability, performance across extreme temperature ranges, and compliance with aerospace quality standards.
Automotive Components
The automotive industry uses shoulder screws in transmission linkages, throttle and control cables, seat adjustment mechanisms, and suspension components. Our IATF 16949 certification ensures automotive quality standards. Automotive shoulder screws require vibration resistance, corrosion protection for various climates, precise tolerances for reliable operation, and compatibility with high-volume production.
Electronics and Precision Instruments

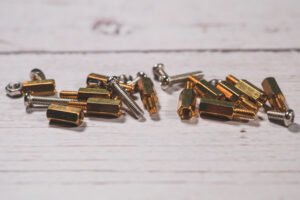

Electronics manufacturers use miniature shoulder screws for PCB mounting and spacing, connector assemblies, optical equipment alignment, and test fixtures. Electronics shoulder screws feature miniature sizes with precision tolerances, non-magnetic stainless steel, ESD-safe materials and coatings, and aesthetic finishes.
Industrial Equipment and Machinery
Industrial applications include conveyor systems and material handling, pump and valve assemblies, printing and packaging machinery, and manufacturing fixtures. Industrial shoulder screws feature high-strength materials for heavy loads, corrosion-resistant coatings, wear-resistant shoulders for extended service life, and custom dimensions for specific equipment requirements.
Frequently Asked Questions
What is the difference between shoulder screws and shoulder bolts?
The terms are often used interchangeably, though “shoulder bolt” sometimes refers to larger sizes or higher-strength applications. Both feature an unthreaded precision shoulder section. At Keyfix, we manufacture shoulder screws in all sizes from miniature to large industrial sizes.
What tolerances can you achieve on shoulder diameter?
We typically achieve shoulder diameter tolerances of ±0.005mm to ±0.01mm through precision grinding. For ultra-precision applications, we can achieve tolerances as tight as ±0.002mm. Thread tolerances follow standard classes (6g for metric, 2A/3A for imperial) or can be tightened as required.
What are minimum order quantities?
For CNC machined custom shoulder screws, we can produce as few as 100-200 pieces for prototypes. Production orders typically start at 500-1,000 pieces, though we work with each customer to find cost-effective solutions based on complexity and material.
How long does production take?
CNC machined prototypes typically require 2-3 weeks. Production orders take 3-5 weeks depending on quantity and complexity. We provide specific timeline estimates during quotation and can expedite for urgent requirements.
Can you provide shoulder screws with special coatings?
Yes, we offer comprehensive coating options including black oxide, zinc plating, nickel plating, hard anodizing for aluminum, Teflon or dry film lubricants for reduced friction, and custom coatings for specific environmental requirements. We can also apply localized coatings if only certain areas require treatment.
Do you provide material certifications?
Yes, we provide mill certificates for raw materials, dimensional inspection reports with measured values, hardness testing results, surface treatment certifications, RoHS and REACH compliance documentation, and complete traceability for critical applications in medical, aerospace, and automotive industries.
Can shoulder screws be used in high-temperature applications?
Yes, material selection and heat treatment can optimize shoulder screws for high-temperature service. Alloy steels maintain strength to 400°C, stainless steels perform well to 600°C, and specialty alloys handle extreme temperatures. We can recommend optimal materials based on your operating temperature range.
How do I determine the correct shoulder diameter and clearance?
Shoulder diameter selection depends on the application. For rotating applications, calculate required clearance based on bearing fit type (typically H7/g6 or H8/f7). For spacing applications, select shoulder diameter based on required strength and available space. Our engineering team can help determine optimal specifications based on load, speed, environment, and assembly requirements.
Keyfix: Your Trusted China Custom Shoulder Screws Factory and Manufacturer
Professional China Factory Since 2007
Established in 2007, Keyfix is a specialized China custom shoulder screws manufacturer serving global customers across automotive, medical devices, aerospace, robotics, and precision machinery industries. With nearly two decades of manufacturing expertise, we consistently deliver precision custom shoulder screws meeting or exceeding exact specifications.
Advanced Manufacturing and Quality Assurance
Our China factory features precision CNC turning and grinding centers, centerless grinding equipment for precision shoulders, thread rolling machines for superior thread strength, and comprehensive quality inspection systems including CMM measurement. We maintain IATF 16949 certification, ensuring rigorous process controls and complete traceability that benefit customers across all industries.
In-House Tooling Design and Engineering Support
Keyfix stands out among China suppliers with our in-house tooling design capability, providing faster turnaround, superior quality control, and reduced costs. Our engineering team offers complete support from design optimization to material selection, tolerance analysis, and prototype development. We help customers determine optimal shoulder diameter, length, and clearance specifications for their specific applications.
Direct Factory Pricing and Global Export Experience
As a direct China manufacturer, we offer competitive pricing through optimized processes and strategic sourcing—without compromising the precision required for shoulder screws. With nearly two decades of export experience, we handle all documentation, packaging, and logistics to deliver reliably to customers throughout North America, Europe, Asia, and worldwide.
Start Your Custom Shoulder Screw Project Today
Whether you’re developing precision machinery, designing medical instruments, optimizing robotic systems, or requiring reliable ongoing supply of custom shoulder screws, Keyfix delivers the precision and quality your application demands.
Contact us with your requirements, drawings, or concepts. Our engineering team will review your specifications, provide design recommendations, and deliver detailed quotations. For new designs, we’ll produce prototypes for validation before production. Once approved, we proceed with rigorous quality controls while keeping you informed.
Visit our website at https://keyfixpro.com/ to learn more about our custom shoulder screw manufacturing capabilities and connect with our engineering team.
Contact Keyfix today and experience the precision that a dedicated China custom shoulder screws factory can deliver for your critical applications.
