KeyFixPro transforms raw wire stock into exceptional-strength fastener components through precision cold heading processes. Our ambient-temperature forming technology achieves mechanical properties 40-60% beyond conventional machining while eliminating material waste.
Cold Heading Mastery for Custom Components
When fastener performance cannot be compromised, cold heading delivers results impossible through traditional manufacturing. KeyFixPro specializes in this precision metal displacement process—reshaping wire through controlled compression rather than removing material—creating components with remarkable strength characteristics and dimensional consistency.
The Cold Heading Method Explained
Cold heading represents a sophisticated metal displacement technique where cylindrical wire experiences extreme localized pressure at ambient temperature. Through KeyFixPro’s sequential die system, material flows into progressively complex shapes—creating bolt heads, shoulder transitions, and specialized features—without cutting, melting, or generating waste chips.
Manufacturing Sequence:
- Progressive headers: 2 through 6-station configurations available
- Component size capability: 2mm through 30mm blank diameters
- Displacement capacity: 3:1 maximum ratio (formed head to original wire)
- Throughput velocity: 200 to 400 finished blanks per minute
- Precision achievement: ±01mm repeatability on specified dimensions
- Surface quality: Ra 1.6μm typical without secondary polishing
Forming Capabilities:

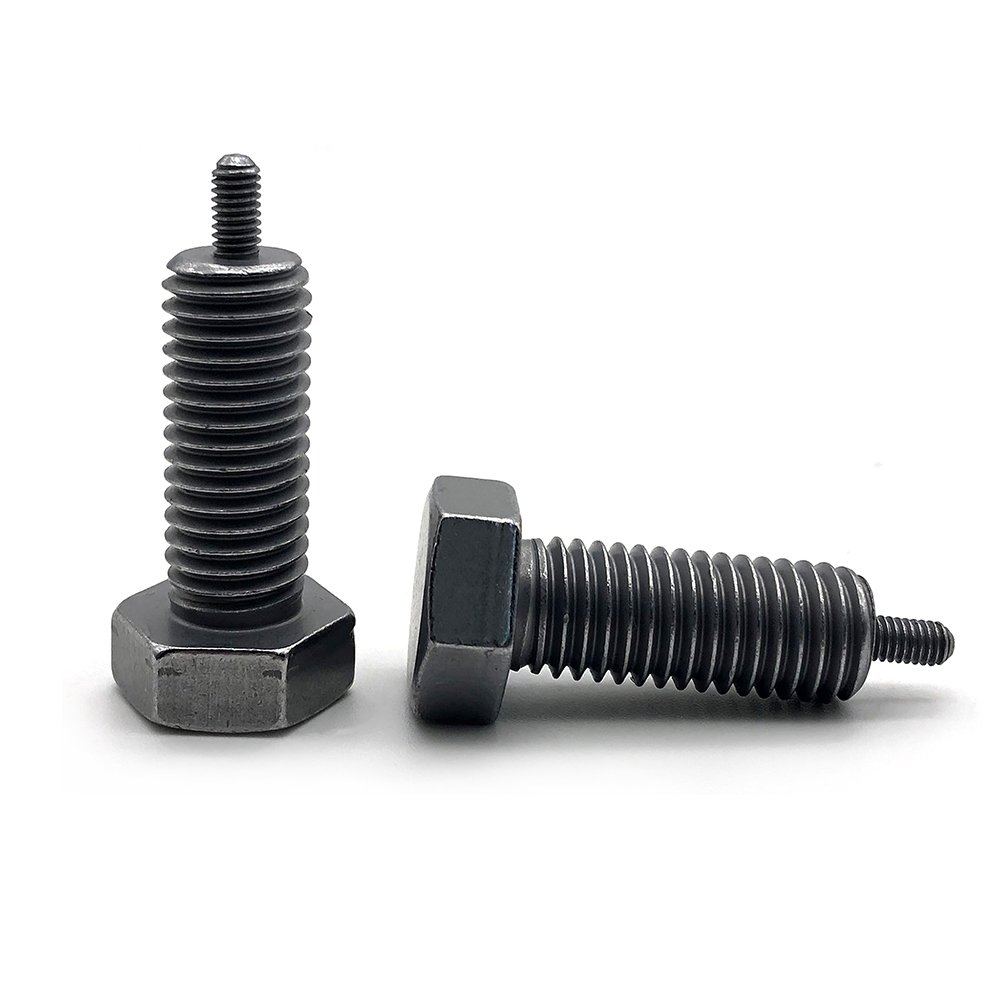

- Standard profiles: Hexagonal, square, cylindrical, and flanged configurations
- Intricate designs: Multi-tier heads, relief grooves, transitional tapers

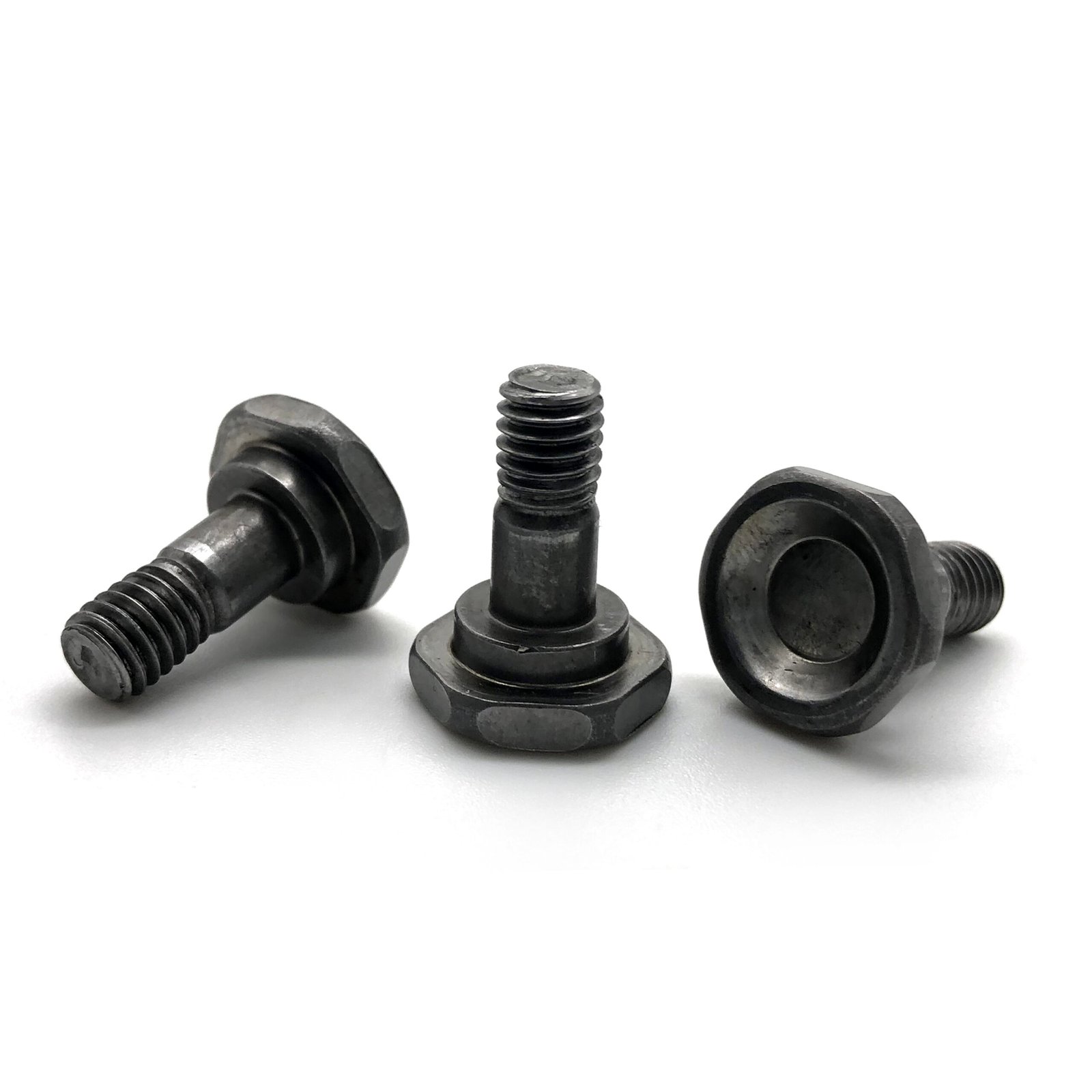

- Diameter management: Precision shoulder creation for specialized assemblies
- Thread preparation: Optimized blank sizing for subsequent rolling operations

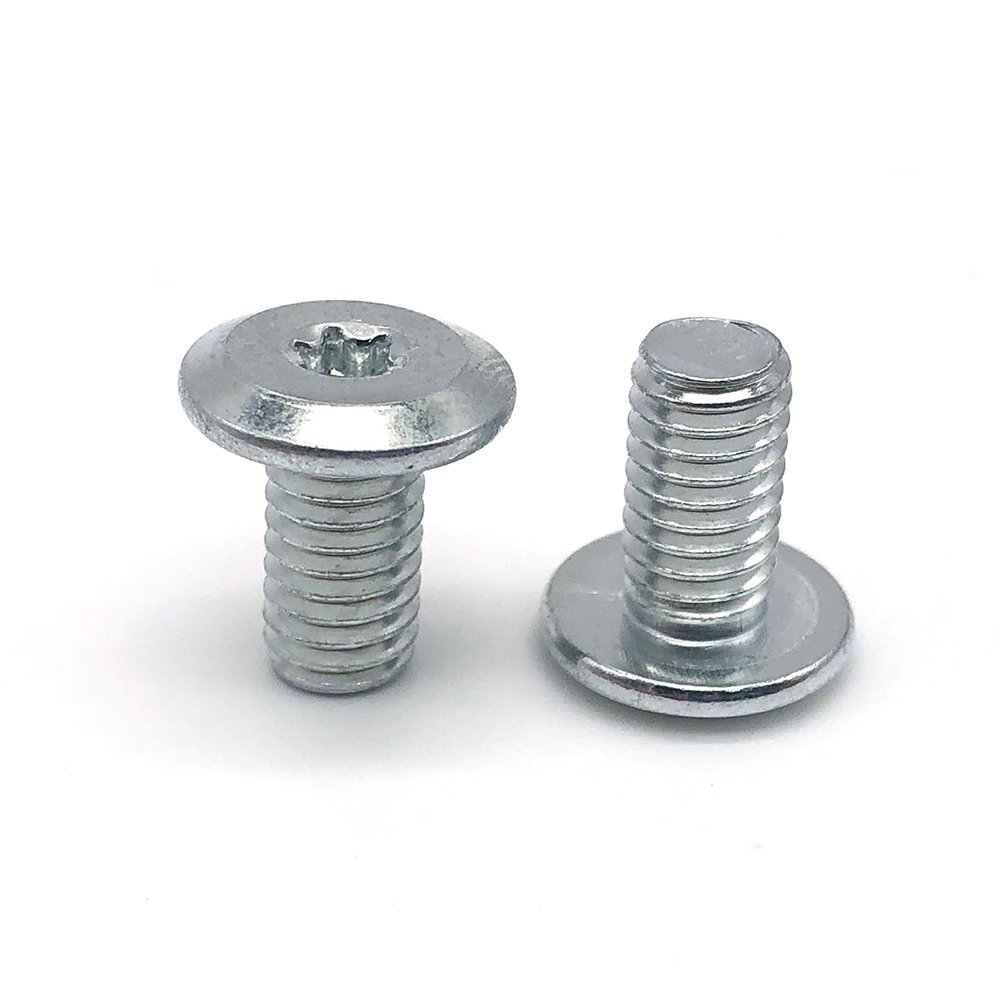

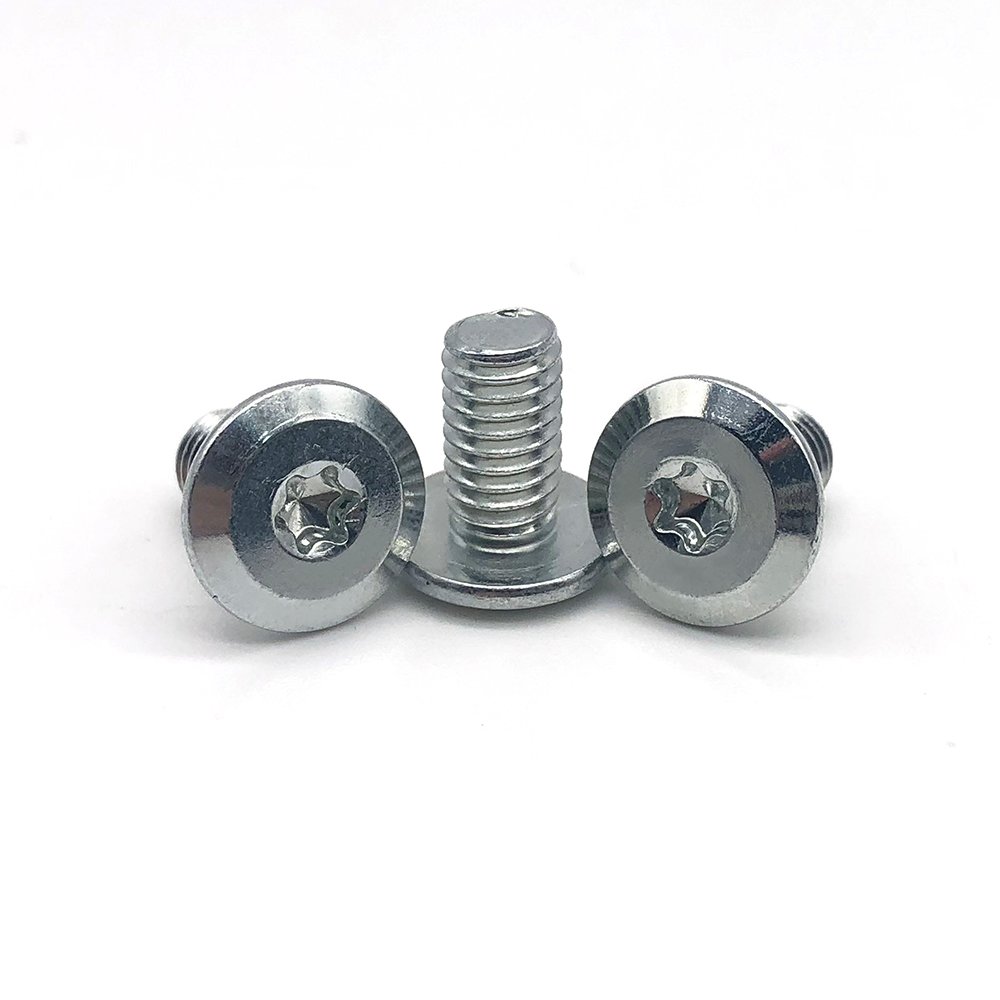

- Drive recesses: Six-lobe, cruciform, and proprietary engagement patterns
- Identity features: Logo embossing and manufacturer markings
Material Expertise for Cold Forming
Steel Grades – Carbon Content Optimized:
- Mild formulations: 1008, 1010, 1018 grades (superior displacement characteristics)
- Moderate strength: 1035, 1045 specifications (performance balanced with workability)
- Performance alloys: 4140, 4340, 8620 grades (demanding load applications)
- Heat-responsive: Class 10.9, 12.9 achieved through post-forming thermal treatment
Corrosion-Resistant Stainless:
- Austenitic family: 304, 316, 18-8 compositions (chemical resistance priority)
- Martensitic types: 410, 416 grades (magnetic properties, heat-treatable)
- Hardening variants: 17-4 PH, 15-5 PH (aerospace-grade performance)
Lightweight & Conductive Metals:
- Aluminum series: 2024, 6061 alloys (weight-critical applications)
- Brass compositions: C260, C360 (electrical conductivity requirements)
- Pure copper: C110 grade (maximum conductivity fasteners)
- Titanium grades: Grade 2, Grade 5 (biomedical and aerospace sectors)
Extreme Environment Alloys:
- Nickel superalloys: Inconel 600, 718 (elevated temperature service)
- Nickel-copper: Monel 400, K500 (marine corrosion resistance)
- Nickel-molybdenum: Hastelloy C-276 (aggressive chemical exposure)
Mechanical Advantages of Cold Displacement
Cold heading generates work-hardened components with uninterrupted grain alignment:
- Tensile Capacity Increase: 40-60% greater ultimate strength versus chip-removal methods
- Cyclic Load Resistance: Continuous grain patterns resist fatigue crack nucleation
- Material Toughness: Controlled deformation maintains impact absorption capability
- Shock Tolerance: Homogeneous microstructure eliminates internal stress risers
- Batch Uniformity: Identical forming parameters ensure property consistency
- Material Conversion: 95-98% of input wire becomes finished product
- Waste Elimination: No swarf generation requiring collection and disposal
- Raw Material Economics: Wire coil pricing advantages over bar stock
- Production Velocity: Output rates 50-200× faster than subtractive machining
- Energy Profile: Eliminates high-speed spindle and coolant system consumption
- Tool-Mark Free: Die-formed surfaces exhibit superior smoothness
- Compressive Surface Layer: Displacement creates beneficial residual stress
- Contamination-Free: No cutting fluid residues requiring cleaning
- Repeatability: Ra 1.6μm maintained across entire production run
Custom Applications Across Industries
- Powertrain components: Variable-diameter shanks achieving weight optimization
- Suspension hardware: Serrated underhead geometry providing self-retention
- Braking assemblies: Integrated washer-flange designs minimizing part count
- Drivetrain fasteners: Complex profiles accommodating restricted access zones
- Airframe attachments: Flush-head configurations with tight tolerance requirements
- High-stress connections: Premium alloy selections with enhanced grain flow
- Turbine hardware: Inconel blanks withstanding thermal cycling
- Mass-critical components: Titanium cold forming for weight reduction
- Structural connections: Heavy-hex profiles for steel framework assembly
- Foundation systems: Large-upset heads for concrete embedment applications
- Curved fasteners: U-bolt configurations formed from continuous wire
- Lifting hardware: Closed-loop eye designs created through multi-station sequences
- Miniature fasteners: M2-M3 scale components for electronic assemblies
- Orthopedic implants: Biocompatible titanium bone fixation hardware
- Electrical terminals: Copper-formed connectors optimized for conductivity
- EMI shielding: Brass knurled-head assemblies for electromagnetic containment
Comprehensive Manufacturing Integration
- Composition Confirmation: AMETEK spectroscopy validates chemistry specifications
- Mechanical Characterization: Tensile and ductility testing ensure formability
- Surface Evaluation: Visual and dimensional inspection confirms defect-free wire
- Diameter Consistency: Statistical sampling verifies uniform cross-section
- Sequential Shaping: Multi-station compression achieves final blank geometry
- Real-Time Monitoring: Dimensional verification during active production
- Contamination Prevention: Automated transfer systems maintain surface integrity
- High-Volume Output: 200-400 completed blanks every 60 seconds

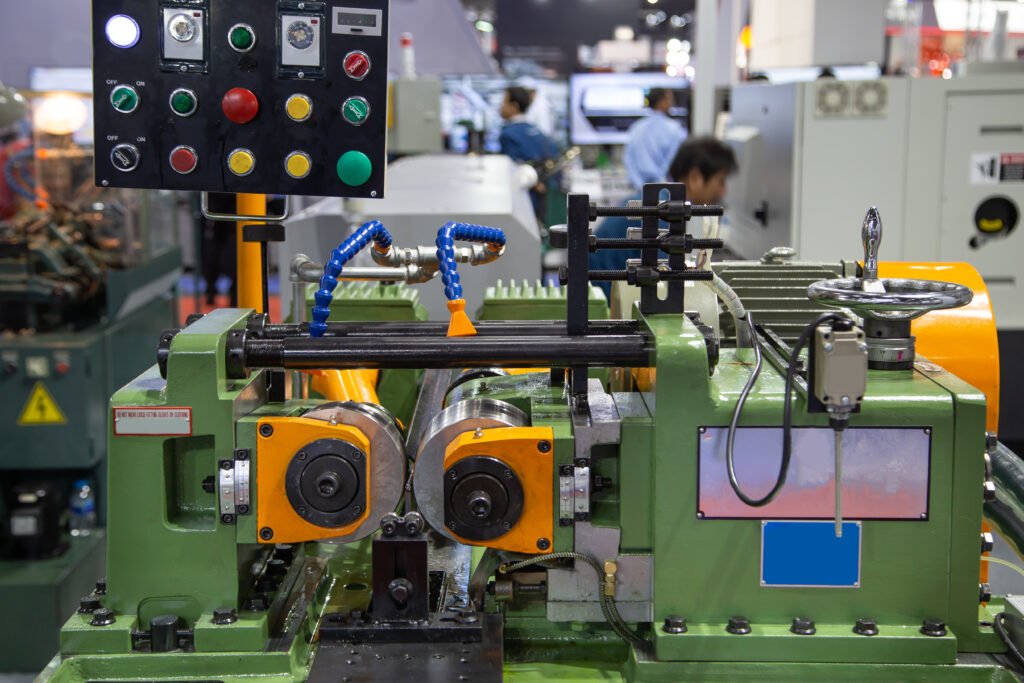

- Displacement Threading: Rolled thread profiles exceed cut-thread strength by 30%
- Dimensional Precision: Consistent pitch accuracy and diameter control
- Surface Hardening: Rolling operation enhances wear and galling resistance
- Grain Flow Continuity: Uninterrupted microstructure throughout threaded region
- Strength Enhancement: Quench-and-temper cycles achieve Class 10.9, 12.9 properties
- Stress Normalization: Heat treatment relieves forming-induced internal stresses
- Surface Hardening: Carburizing or nitriding for wear-critical applications
- Atmosphere Control: Protective environment prevents surface degradation
- Electrolytic Zinc: Sacrificial corrosion protection with appearance options
- Zinc-Nickel Alloy: Superior salt-spray performance for automotive exposure
- DACROMET Systems: Extended corrosion resistance exceeding 1000-hour testing
- Conversion Coatings: Phosphate preparation for enhanced paint adhesion
- Chemical Passivation: Stainless steel surface treatment for maximum corrosion immunity
- Vision System Inspection: 100% automated sorting identifies any surface anomalies
- Three-Dimensional Scanning: Complex head profiles verified against design models
- Mechanical Property Sampling: Statistical tensile testing confirms strength requirements
- Thread Functionality: Go/no-go gauging validates engagement characteristics
- Precision Measurement: CMM verification of critical dimensions to ±0.005
Quality Systems & Compliance
- ISO 9001:2015 Quality Management Systems
- IATF 16949 Automotive Quality System Standard
- AS9100D Aerospace Quality Management
- First Article Inspection (FAI) comprehensive reporting
- Production Part Approval Process (PPAP) Level 3 and 4
- Material certifications including spectrometer analysis data
- Mechanical property documentation with test methodology
- Environmental exposure testing records
- Hydrogen embrittlement prevention protocol verification
- AMETEK Optical Emission Spectroscopy System
- Three-Dimensional Laser Scanning Technology
- Automated Optical Sorting (100% throughput inspection)
- Universal Mechanical Testing Equipment
- Multi-Scale Hardness Testing (Rockwell/Vickers/Brinell)
- Precision Thread Gauging and Optical Comparison
- Coordinate Measuring Machine (1-micron resolution)
Engineering Your Component for Cold Heading Success
KeyFixPro’s technical team delivers Design for Manufacturability (DFM) evaluation:
- Displacement limit: 3:1 maximum (formed diameter relative to wire stock)
- Thickness requirement: Minimum 0.4× original wire diameter
- Corner radius specification: 0.1× wire diameter minimum prevents material fracture
- Transition geometry: Smooth underhead fillet eliminates stress concentration
- Recessed depth limitation: Maximum 0.3× head diameter for feature stability
- Reduction per station: 40% maximum diameter decrease in single operation
- Transition profile: Gradual diameter change prevents folding defects
- Aspect ratio limits: Length-to-diameter ratios up to 6:1 achievable
- Thread blank sizing: Calculated considering thread class and finishing allowance
- Surface patterns: Knurls and serrations must conform to cold-forming capabilities
- Formability rating: Specify alloys classified “excellent” or “good” for cold work
- Carbon limitation: Maintain below 0.35% carbon for optimal displacement
- Strain hardening: Consider post-forming hardness versus initial wire state
- Wire quality specification: Require defect-free surface for clean forming results
- Thermal treatment planning: Schedule cold heading prior to hardening operations
KeyFix Cold Heading Production Capabilities
Parameter | Capability Range | Custom Application Benefit |
Wire Stock Diameter | 2mm – 30mm | M2 through M30 fastener range |
Forming Stations | 2-6 sequential operations | Progressive complexity accommodation |
Upset Ratio Maximum | 3:1 displacement | Large-head geometry capability |
Cycle Rate | 200-400 completed/minute | High-volume economic efficiency |
Tolerance Achievement | ±0.01mm repeatability | Critical dimension control |
Surface Quality | Ra 1.6μm typical | Minimal finishing requirement |
Material Efficiency | 95-98% utilization | Waste elimination economics |
Strength Enhancement | 40-60% vs machined | Work-hardened microstructure |
Length Capacity | 300mm maximum | Extended fastener blank production |
Production Scale | 1,000 – 1M+ units | Scalable volume flexibility |
Custom Cold Headed Components Across Applications
Powertrain assemblies, chassis connections, wheel mounting systems, braking components
Aircraft structural attachments, propulsion system hardware, flight-safety-critical fasteners
Steel framework connections, foundation anchor systems, seismic-rated assemblies
Tower flange assemblies, blade pitch mechanisms, nacelle structural hardware
Track mounting systems, rolling stock assemblies, vibration-isolation hardware
Equipment mounting systems, high-load connections, replacement component manufacturing
Pipeline flange connections, drilling equipment, chemical-resistant fasteners
Instrument assemblies, implantable fixation hardware, biocompatible materials
