Precision Screw Machining Services: China’s Advanced Custom Manufacturing Solutions
The demand for precision-engineered turned components continues accelerating as industries pursue tighter tolerances and complex geometries beyond standard catalog offerings. Global screw machining market reached $28.4 billion in 2022, with projected 5.8% annual growth th rough 2030[^1]. Custom screw machining services address this expanding need through advanced Swiss-type CNC technology, multi-axis capabilities, and integrated secondary operations—delivering components from prototypes through production volumes across diverse material families.
[^1]: Allied Market Research Manufacturing Technology Report 2023: https://www.alliedmarketresearch.com/
KeyFixPro operates comprehensive screw machining capabilities spanning Swiss-type automatic lathes, multi-spindle equipment, and CNC machining centers—producing custom screw machine products from 0.5mm to 50mm diameter with tolerances to ±0.002mm. This article examines technologies, material considerations, and quality protocols defining excellence in precision turned component manufacturing.
Understanding Custom Screw Machining Technology
Custom screw machining encompasses precision turning operations producing cylindrical components with complex features—threads, cross-holes, flats, tapers, and intricate profiles—in single setups minimizing handling and maximizing accuracy. Unlike conventional CNC turning holding workpieces from one end, screw machines support material near the cutting zone, enabling extreme length-to-diameter ratios and tight tolerances.
Screw Machining Technology Comparison
| Technology | Diameter Range | Tolerance Capability | Complexity | Best Applications |
|---|---|---|---|---|
| Swiss-Type CNC | 0.5mm – 32mm | ±0.002mm | Very high (multi-axis, live tools) | Medical devices, electronics, precision instruments |
| Multi-Spindle Automatic | 3mm – 65mm | ±0.005mm | Moderate (rotational symmetry) | High-volume automotive, fasteners |
| CNC Turning Centers | 10mm – 300mm | ±0.01mm | High (complex non-rotational) | Larger components, low-medium volume |
| Single-Spindle Automatic | 5mm – 38mm | ±0.01mm | Low-moderate | Simple geometries, high volume |
Swiss-Type CNC Lathes represent the pinnacle of precision turning technology. Guide bushing positioned close to cutting tools supports workpiece immediately adjacent to machining zone, dramatically reducing deflection during cutting. KeyFixPro operates 24 Swiss-type machines from Citizen, Star, and Tsugami—equipment featuring sub-spindles (enabling backside operations without manual flipping), live tooling (powered rotating cutters for milling, drilling, cross-holes), and Y-axis capability (off-centerline machining for complex profiles).
Multi-Spindle Automatic Screw Machines excel at high-volume production where operational sequences remain consistent. Multiple spindles (typically 6 or 8) index through tooling stations simultaneously, with all spindles producing parts concurrently. Production rates reach 30-60 finished parts per minute depending on component complexity—ideal for automotive fasteners, electrical contacts, or fluid fittings requiring millions of annual pieces.
Material Expertise for Screw Machining
Material selection profoundly impacts machinability, tool life, surface finish, and production economics. Custom screw machining services require expertise across ferrous metals, non-ferrous alloys, and engineering plastics.
Material Machinability and Applications
| Material Category | Common Grades | Machinability Rating | Typical Applications |
|---|---|---|---|
| Free-Machining Steel | 12L14, 1215 | Excellent (100% baseline) | Fasteners, pins, shafts, general hardware |
| Alloy Steel | 4140, 8620, 4340 | Good (65-75%) | High-strength components, automotive parts |
| Stainless Steel | 303, 304, 316, 17-4 PH | Fair (40-60%) | Corrosion resistance, medical, food equipment |
| Brass & Copper | C360, C464, C110 | Excellent (90-100%) | Electrical components, plumbing, decorative |
| Aluminum | 2011, 6061, 7075 | Excellent (80-90%) | Aerospace, electronics, lightweight structures |
| Titanium | Grade 2, Ti-6Al-4V | Poor (20-30%) | Aerospace, medical implants, marine |
| Engineering Plastics | PEEK, Delrin, Nylon | Variable (50-85%) | Insulators, bearings, chemical resistance |
Free-Machining Steels contain sulfur or lead additives creating chip-breaking inclusions—dramatically improving tool life and surface finish. Grade 12L14 (leaded) and 1215 (resulfurized) serve as industry machinability standards. KeyFixPro produces millions of precision components monthly from these grades for automotive sensors, electrical connectors, and industrial fasteners requiring cost-effective production.
Stainless Steel Grades present machining challenges—work-hardening tendencies, low thermal conductivity, and chemical affinity with tool materials. Type 303 (free-machining stainless with sulfur additions) improves machinability versus standard 304, though slightly reducing corrosion resistance. Type 316 adds molybdenum for superior chloride resistance—specified for marine applications and chemical processing equipment. Precipitation-hardening 17-4 PH achieves high strength after aging heat treatment, serving aerospace and medical device applications.
According to research published in the International Journal of Machine Tools and Manufacture, optimal cutting parameters for austenitic stainless require 40-60% reduced speeds versus carbon steel, with positive rake geometry tools and aggressive coolant delivery preventing work-hardening ahead of cutting edges[^2].
[^2]: International Journal of Machine Tools and Manufacture: https://www.sciencedirect.com/journal/international-journal-of-machine-tools-and-manufacture
Brass and Copper Alloys machine exceptionally well—C360 brass (free-machining with 35% zinc) enables extremely high cutting speeds and fine surface finishes. KeyFixPro produces intricate brass components for plumbing valves, pneumatic fittings, and decorative hardware. Silicon bronze (C651) provides superior corrosion resistance for marine applications, while pure copper (C110) serves electrical applications requiring maximum conductivity.
Aluminum Alloys combine excellent machinability with lightweight properties. Grade 2011 (free-machining aluminum) contains bismuth and lead improving chip breaking. Grade 6061 offers good strength-to-weight ratio with decent machinability after T6 heat treatment. Grade 7075 provides maximum strength for aerospace applications, though lower machinability and higher material costs restrict usage to weight-critical components.
Advanced Manufacturing Capabilities
Producing custom screw machine products requires integrated capabilities spanning primary turning operations, secondary machining, heat treatment, surface finishing, and quality verification.
KeyFixPro Manufacturing Capability Matrix
| Process | Equipment | Capacity | Precision Level |
|---|---|---|---|
| Swiss CNC Turning | 24 machines (Citizen, Star, Tsugami) | 0.5mm – 32mm diameter | ±0.002mm tolerance, Ra 0.4μm finish |
| Multi-Spindle Automatic | 12 machines (6-8 spindle) | 3mm – 65mm diameter | ±0.005mm, 30-60 parts/minute |
| CNC Machining Centers | 8 multi-axis mills | Complex secondary features | ±0.005mm on milled features |
| Thread Rolling | Planetary and flat die systems | M2 – M30 precision | Class 2A-3A per ASME B1.1 |
| Heat Treatment | Batch furnaces, induction systems | All standard processes | Controlled atmosphere, ±15°F |
| Surface Finishing | Plating, anodize, coating lines | Zinc, nickel, chrome, custom | Per ASTM/automotive specifications |
| Quality Lab | CMM, optical, hardness, tensile | Full dimensional + material validation | ISO 17025 traceable standards |

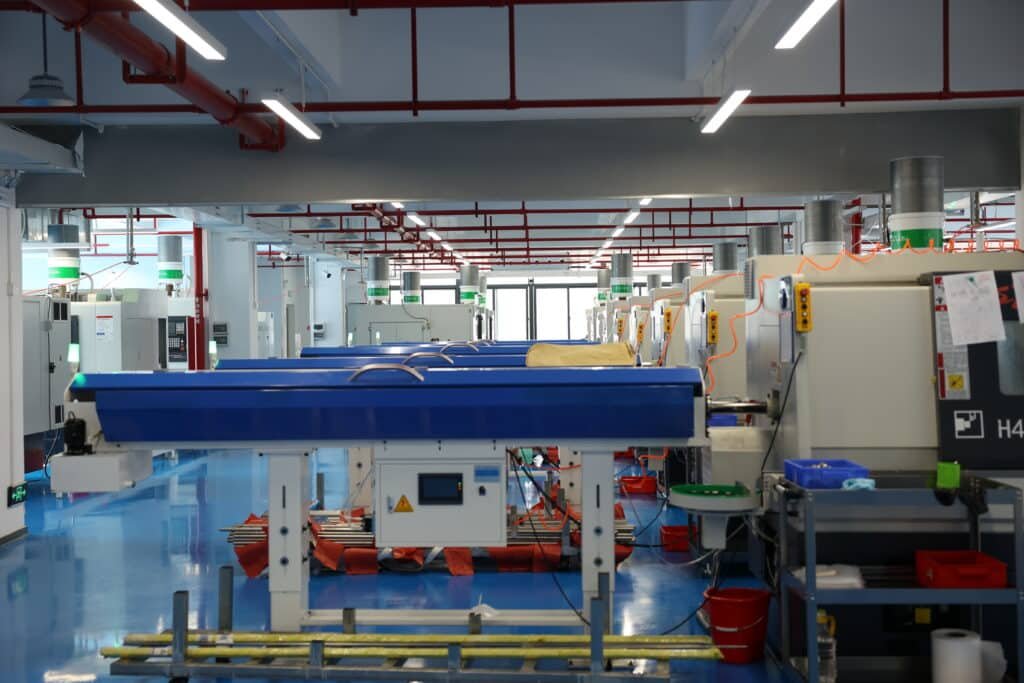

Swiss-Type CNC Operations enable complete part production in single operations. Main spindle holds bar stock while guide bushing supports material near cutting zone. Front tools perform turning, threading, grooving operations. Live tools (rotating cutters powered by Y-axis) mill flats, drill cross-holes, create complex non-rotational features. Sub-spindle receives parted component, enables backside machining (threads, chamfers, center drilling), then ejects finished part. KeyFixPro’s newest Swiss machines feature 9-axis capability—main spindle, sub-spindle, X/Z primary tools, Y-axis, B-axis (live tool rotation), plus additional positioning axes—creating geometric complexity impossible with conventional turning.
Secondary Operations Integration distinguishes comprehensive manufacturers from basic turning shops. CNC milling centers add features beyond Swiss-type capabilities—large-area flats, keyways, complex pockets. Broaching operations create internal splines or keyways. Grinding achieves precision diameters (±0.0005mm) or surface finishes (Ra 0.1μm) for bearing surfaces or gage components. KeyFixPro coordinates these operations through integrated production planning, maintaining traceability and eliminating multi-supplier coordination challenges.
Heat Treatment Services modify material properties achieving specified hardness and strength. Through-hardening (quench and temper) develops high strength in medium-carbon and alloy steels. Case-hardening (carburizing, nitriding) creates hard wear-resistant surfaces with tough ductile cores. Stress-relieving removes residual stresses from machining preventing dimensional instability. Age-hardening precipitation-hardens aluminum and stainless alloys developing maximum strength. KeyFixPro’s controlled-atmosphere furnaces prevent surface oxidation and decarburization—critical for precision components where dimensional changes or surface degradation prove unacceptable.
Quality Assurance and Industry Certifications
Precision custom screw machining services demand comprehensive quality systems ensuring dimensional accuracy, material integrity, and process consistency across production lots.

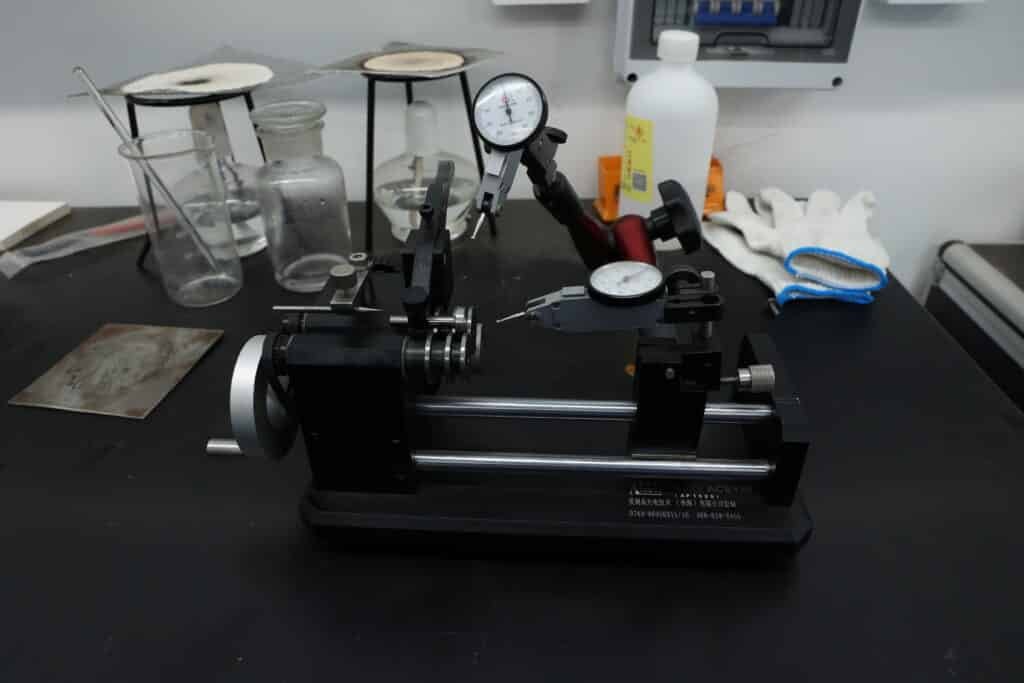

Quality Verification Protocol
| Inspection Type | Equipment | Measurement Capability | Sampling Frequency |
|---|---|---|---|
| Dimensional (Rotational) | Optical comparator, air gages | ±0.001mm resolution | First article + statistical sampling |
| Dimensional (Complex) | CMM (Zeiss) | ±0.0005mm 3D accuracy | First article + critical features |
| Surface Finish | Profilometer | Ra 0.05-10μm range | Per specification requirement |
| Thread Inspection | Thread gauges, optical | Per ASME B1.1, ISO 965 | Go/no-go on 100% or sampling |
| Material Verification | OES spectrometer | Chemical composition | 100% heat lots incoming |
| Mechanical Properties | Tensile tester, hardness | Strength, hardness validation | Per heat lot, statistical basis |
| Visual/Cosmetic | Magnified inspection | Surface defects, burrs | 100% or automated optical |
Statistical Process Control (SPC) enables proactive quality management. KeyFixPro implements real-time monitoring on critical dimensions—automated gaging systems measure parts during production, control charts track trends, operators receive alerts when processes drift toward specification limits. This approach prevents non-conforming production accumulation, reducing scrap and maintaining delivery schedules.
First Article Inspection (FAI) validates manufacturing capability before production begins. Complete dimensional verification per customer drawings, material certification review, visual/functional testing, and comprehensive documentation (AS9102 forms for aerospace) confirm process readiness. KeyFixPro provides detailed FAI packages including dimensional reports with actual measurements, material certificates, process capability studies (Cpk calculations), and photographic documentation.
Certification and Compliance demonstrates organizational quality maturity. KeyFixPro maintains ISO 9001:2015 (quality management), IATF 16949:2016 (automotive quality), and ISO 13485:2016 (medical devices)—validated through annual third-party audits. These certifications require documented procedures, calibrated measurement equipment traceable to national standards (NIST), employee training records, and continuous improvement initiatives.
Application-Specific Engineering Solutions
Different industries utilizing custom screw machine products impose distinct requirements affecting material selection, tolerance specifications, and quality documentation.
Industry Application Overview
| Industry | Component Examples | Material Requirements | Critical Specifications |
|---|---|---|---|
| Automotive | Sensor housings, fuel injectors, ABS components | Brass, steel, stainless | PPAP documentation, ±0.01mm, Cpk >1.67 |
| Medical Devices | Surgical instruments, implant components | 316L SS, titanium, PEEK | Biocompatibility, Ra 0.8μm, ISO 13485 |
| Aerospace | Actuator components, fittings, couplings | Aluminum, titanium, stainless | AS9100D, material traceability, 100% inspection |
| Electronics | Connectors, terminals, standoffs | Brass, copper, aluminum | Tight tolerances, plating thickness control |
| Hydraulics | Valve bodies, fittings, adapters | Steel, stainless, brass | Pressure testing, thread precision |
| Defense | Firing pin components, trigger assemblies | Alloy steel, stainless | DFARS compliance, full traceability |
Automotive Applications prioritize production scalability and zero-defect quality. Fuel injection components require extreme precision—orifice diameters controlled to ±0.005mm directly affecting spray patterns and emissions compliance. KeyFixPro produces millions of automotive sensor housings annually, with automated optical inspection systems examining 100% of production for dimensional accuracy and surface defects. Production Part Approval Process (PPAP) documentation demonstrates manufacturing capability meeting customer requirements.
Medical Device Components mandate biocompatibility validation and comprehensive traceability. Surgical instrument parts machined from 316L stainless steel receive passivation treatments per ASTM F86 removing surface iron contamination. Orthopedic implant components require material certificates tracing chemistry to original ingot, mechanical property testing validating strength and ductility, and surface finish measurements confirming Ra 0.8μm specifications minimizing bacterial adhesion. KeyFixPro’s ISO 13485 certified quality system addresses medical device regulatory requirements including design controls, risk management, and post-market surveillance.
Electronics Industry demands miniaturization—connectors, terminals, and standoffs as small as 0.5mm diameter with intricate features. Brass components receive precise plating thickness (gold, silver, tin) affecting electrical conductivity and contact resistance. KeyFixPro produces micro-precision components for telecommunications equipment, consumer electronics, and industrial sensors, with optical inspection validating dimensions exceeding conventional gage capabilities.
Competitive Advantages of Chinese Manufacturing
China’s screw machining industry invested over $4.2 billion in advanced equipment during 2020-2023 according to China Machine Tool Industry Association data[^3], focusing on Swiss-type CNC lathes, multi-spindle automatics, and quality measurement systems.
[^3]: China Machine Tool Industry Association Report 2023: http://www.cmtba.org.cn/
KeyFixPro exemplifies this modernization through comprehensive capabilities—24 Swiss-type CNC lathes (Citizen Cincom, Star SR-series, Tsugami SS-series), 12 multi-spindle automatic screw machines, integrated secondary machining, heat treatment facilities, surface finishing lines, and quality laboratories operating Zeiss CMM equipment and Thermo Fisher spectrometers.
Cost and Lead Time Advantages
| Factor | Typical Range | KeyFixPro Advantage |
|---|---|---|
| Tooling Cost | $2,000-$8,000 | In-house tool room reduces 30-40% |
| Material Cost | Market-based | Volume purchasing 12-18% savings |
| Labor Efficiency | Variable | Automation + skilled workforce |
| Prototype Lead Time | 2-4 weeks industry | 7-10 days typical |
| Production Lead Time | 4-8 weeks industry | 3-5 weeks typical |
| Minimum Quantity | 1,000-5,000 typical | 500 pieces (100 prototypes) |
Cost competitiveness stems from vertical integration—in-house tool room produces Swiss-type guide bushings and collets, material purchasing volume generates 12-18% savings versus spot market pricing, automated production cells reduce labor content per piece. For Western buyers, landed costs from Chinese custom screw machining services typically run 25-40% below domestic alternatives when comparing equivalent quality, lead times, and service levels.
Production flexibility accommodates prototype through production volumes. Small-batch capabilities (100-500 pieces) enable design validation without excessive minimum orders. Large-volume efficiency (1 million+ pieces annually per component) leverages automated cells and optimized material procurement. KeyFixPro maintains dedicated prototype machining cells separate from production lines, ensuring rapid turnaround without disrupting scheduled manufacturing.
Selecting a Screw Machining Partner
Evaluating potential suppliers requires assessing technical capabilities, quality system maturity, and collaborative engineering support beyond price comparisons.
Supplier Evaluation Framework
| Criterion | Basic Capability | KeyFixPro Standard |
|---|---|---|
| Equipment | Single technology focus | Swiss CNC + multi-spindle + secondary machining |
| Size Range | Limited diameter range | 0.5mm – 65mm diameter capability |
| Certifications | ISO 9001 only | ISO 9001 + IATF 16949 + ISO 13485 |
| Quality Lab | Basic inspection | CMM, OES, profilometer, tensile testing |
| Engineering Support | Order processing | DFM analysis, material consultation, prototyping |
| Secondary Operations | Outsourced | Heat treat, plating, assembly in-house |
| Minimum Quantity | 5,000-10,000 | 500 production (100 prototype) |
| Lead Time | 6-10 weeks | 3-5 weeks production, 7-10 days samples |
Manufacturing Capability Assessment examines equipment diversity and condition. Modern Swiss-type CNC lathes with sub-spindles, live tooling, and Y-axis capability indicate serious investment. Multi-spindle automatics demonstrate high-volume competency. CNC machining centers, thread rolling equipment, and heat treatment facilities suggest vertical integration eliminating coordination challenges. KeyFixPro’s equipment portfolio—acquired from premium manufacturers (Citizen, Star, Tsugami) within past 10 years—reflects commitment to technology leadership.
Engineering Collaboration differentiates manufacturing partners from order processors. Experienced suppliers provide Design for Manufacturability feedback—identifying features difficult to produce, suggesting tolerance relaxations maintaining functionality while reducing costs, recommending alternative materials offering equivalent performance at lower prices. KeyFixPro engineers conduct complimentary DFM reviews, leveraging 20+ years collective screw machining experience across automotive, medical, aerospace, and electronics sectors.
Quality System Depth extends beyond certification plaques. Review actual procedures, calibration records, and corrective action processes. Statistical process control implementation—real-time monitoring, automated alerts, operator authority adjusting processes—indicates proactive quality culture. KeyFixPro’s quality management system integrates SPC software with production equipment, recording dimensional data automatically and flagging trends requiring investigation.
Conclusion
The specialized requirements of precision turned components demand manufacturing partners combining advanced screw machining technologies, material expertise, and systematic quality management. KeyFixPro provides comprehensive custom screw machining services through 24 Swiss-type CNC lathes, 12 multi-spindle automatic machines, and integrated secondary operations—producing custom screw machine products from 0.5mm to 65mm diameter with tolerances to ±0.002mm.
ISO 9001, IATF 16949, and ISO 13485 certifications demonstrate quality system maturity addressing automotive, medical device, and general industrial requirements. In-house capabilities spanning machining, heat treatment, surface finishing, and quality verification enable single-source accountability and competitive lead times—3 to 5 weeks production, 7 to 10 days prototypes.
Whether your application involves automotive sensor housings requiring PPAP documentation, medical device components demanding biocompatibility validation, aerospace fittings needing material traceability, or electronics connectors requiring micro-precision tolerances, KeyFixPro engineers optimize material selection and manufacturing processes delivering reliable performance.
Contact our engineering team to discuss your custom screw machining requirements—we’ll analyze component geometry, material specifications, volume requirements, and quality standards developing cost-effective solutions meeting technical and delivery objectives.
