What Are Brass Hexagon Socket Cap Head Screws and Why They Matter

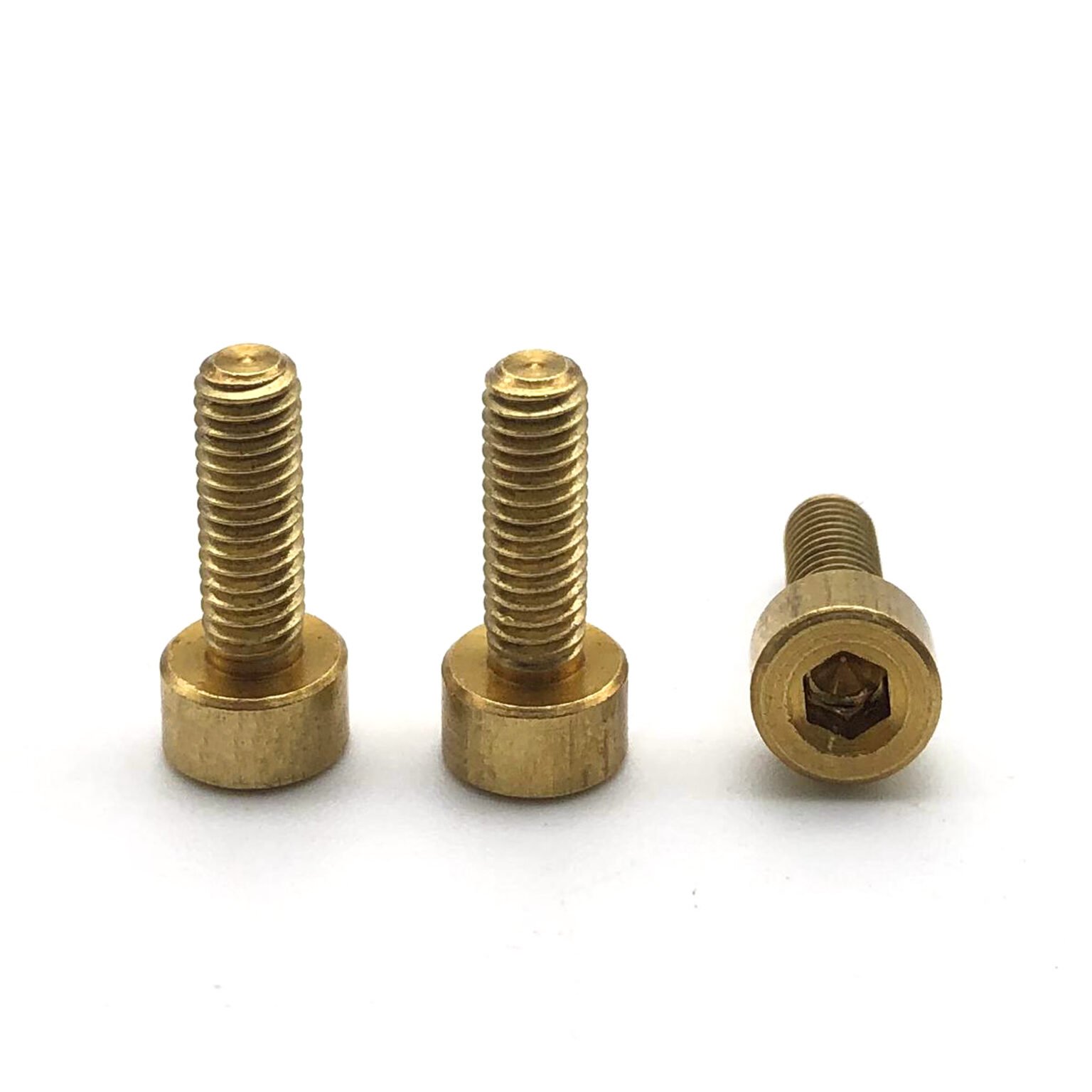

Brass hexagon socket cap head screws — often referred to as brass socket head cap screws or brass Allen cap screws — are precision fasteners combining a cylindrical cap-shaped head with a hexagonal (Allen/hex key) internal drive socket. The defining feature is the recessed hex socket, which allows installation with a hex key in tight or recessed clearance spaces where a conventional external-drive fastener simply cannot fit.
When buyers search for fastener supplies M3 M4 brass hexagon socket cap head screws, they are typically sourcing small-diameter, non-magnetic, corrosion-resistant hardware for applications where standard steel screws would fall short. The M3 (3mm nominal diameter) and M4 (4mm nominal diameter) sizes represent two of the most widely demanded dimensions across electronics, optical instruments, medical devices, and precision mechanical assemblies.
Why choose brass over steel or stainless for small fasteners?
Steel socket cap screws offer high tensile strength but are prone to corrosion in humid or chemically active environments without a protective coating. Stainless steel (A2/A4) provides corrosion resistance but adds cost and machining complexity at small diameters. Brass occupies a unique middle ground:
- Inherent corrosion resistance — brass alloys naturally resist oxidation and many chemical media without surface treatment
- Non-sparking & non-magnetic — critical in electrical assemblies, flammable gas environments, and MRI-adjacent applications
- Excellent machinability — free-machining brass (CuZn39Pb3, equivalent to C36000) allows tight tolerances at M3–M4 diameters where hard materials risk head cracking during cold forming. Discover more about our cold forging capabilities that deliver high-precision small fasteners at scale.
- Aesthetic appeal — golden hue makes brass socket screws a preferred decorative hardware choice in consumer electronics, furniture, and audio equipment
- RoHS-compliant options available — lead-free brass (CuZn21Si3P) meets global environmental regulations for electronics assembly
Understanding these material advantages is the foundation for selecting the right fastener solution — a guiding principle at Keyfix since our founding in 2007.
Material Advantages of Brass in Socket Cap Screws
Not all brass is equal. The performance of M3 M4 brass hexagon socket cap head screws depends heavily on alloy selection, which Keyfix engineers optimize per application:
| Brass Alloy | Composition | Key Properties | Typical Application |
|---|---|---|---|
| CuZn39Pb3 (C36000) | Cu 60%, Zn 39%, Pb 1–3% | Best machinability, moderate strength | General electronics, instrumentation |
| CuZn30 (C26000) | Cu 70%, Zn 30% | Higher ductility, cold-formable | Precision optical, medical |
| CuZn21Si3P (Silicon Brass) | Cu ~76%, Zn ~21%, Si ~3% | Lead-free, RoHS compliant | Electronics export (EU/US markets) |
| CuZn20Al2 (Naval Brass variant) | Cu ~77%, Zn ~20%, Al ~2% | Superior marine corrosion resistance | Marine, coastal equipment |
For M3 and M4 diameters specifically, CuZn39Pb3 remains the industry standard due to its exceptional machinability — critical for achieving the precise hex socket geometry and head tolerances that prevent cam-out or head deformation during torque application. Learn more about our full raw material and surface treatment options for brass fasteners.
For export-oriented electronic products destined for EU markets, Keyfix recommends lead-free CuZn21Si3P to ensure full RoHS and REACH compliance without performance compromise.
Popular Specifications: M3 & M4 Brass Socket Cap Screws
Keyfix supplies brass hexagon socket cap head screws in accordance with DIN 912, ISO 4762, and ASME B18.3 standards. Below are the most frequently requested configurations, produced through our CNC precision machining centers and multi-station cold heading systems:
M3 Brass Hexagon Socket Cap Head Screws
| Parameter | Specification |
|---|---|
| Nominal Diameter | M3 (3.0 mm) |
| Thread Pitch | 0.5 mm (coarse, standard) |
| Head Diameter (dk) | 5.5 mm |
| Head Height (k) | 3.0 mm |
| Hex Socket Size (s) | 2.5 mm (A/F) |
| Tensile Strength | ≥ 500 MPa (brass, CuZn39Pb3) |
| Length Range | M3×4 to M3×50 (custom lengths available) |
| Thread Tolerance | 6g (ISO 965) |
| Standard Reference | DIN 912 / ISO 4762 |
M4 Brass Hexagon Socket Cap Head Screws
| Parameter | Specification |
|---|---|
| Nominal Diameter | M4 (4.0 mm) |
| Thread Pitch | 0.7 mm (coarse, standard) |
| Head Diameter (dk) | 7.0 mm |
| Head Height (k) | 4.0 mm |
| Hex Socket Size (s) | 3.0 mm (A/F) |
| Tensile Strength | ≥ 500 MPa (brass, CuZn39Pb3) |
| Length Range | M4×5 to M4×80 (custom lengths available) |
| Thread Tolerance | 6g (ISO 965) |
| Standard Reference | DIN 912 / ISO 4762 |
Custom configurations — including fine pitch (M3×0.35, M4×0.5), non-standard head heights, partial threading, and special hex socket depths — are available through Keyfix’s CNC machining and cold heading capabilities, with tolerance achievable to ±0.005 mm on critical dimensions. Explore our full range of CNC fastener products for more custom solutions.
Surface Finish & Treatment Options
The inherent corrosion resistance of brass is often sufficient for indoor or dry environments. For demanding applications, Keyfix offers the following surface treatments on M3 M4 brass socket cap screws, all processed under our strict material and coating standards:
| Treatment | Corrosion Resistance | Appearance | Typical Use |
|---|---|---|---|
| As-machined (natural brass) | Moderate | Golden | General indoor electronics |
| Nickel plating | Good (200–500h salt spray) | Silver-bright | Consumer electronics, audio |
| Chrome plating | Excellent | Mirror chrome | Decorative hardware, furniture |
| Tin plating | Good + solderability | Matte silver | PCB-adjacent assemblies |
| Black oxide | Low (oil coating required) | Matte black | Optical, camera equipment |
| Clear lacquer | Moderate | Retains brass tone | Architectural, decorative |
All plating processes at Keyfix are verified using AMETEK spectrometer analysis for coating composition and thickness, with 100% optical inspection on critical dimensional features.
Application Industries for M3 M4 Brass Socket Cap Screws
Electronics & Semiconductor Equipment
In PCB enclosures, sensor housings, and automated test equipment, M3 M4 brass socket cap screws are the default choice where steel would risk galvanic corrosion against aluminum chassis, or where non-magnetic properties are required near sensitive circuits. The hex socket drive also enables precise torque control critical to preventing PCB substrate damage during assembly. For more industrial machinery applications, see our custom fasteners for machinery solutions.
Medical Devices & Laboratory Instruments
Medical device OEMs specify brass socket screws for sterilizable housings, diagnostic equipment frames, and surgical instrument assembly — where non-sparking properties, biocompatibility of coated brass, and dimensional stability across sterilization cycles matter most. Keyfix supplies medical-grade brass fasteners with full material traceability and lot control.
Optical & Precision Instruments
Cameras, telescopes, microscopes, and precision measurement instruments rely on M3 M4 brass socket cap screws for their vibration-damping characteristics, machinability for fine adjustment mechanisms, and dimensional stability at small diameters. Brass’s lower magnetic permeability also avoids interference with sensitive optical-magnetic assemblies.
Consumer Electronics & Audio Equipment
In premium audio equipment, hi-fi speaker enclosures, and consumer electronics with exposed fasteners, brass socket cap screws deliver both functional reliability and the warm, premium aesthetic that aligns with product design intent. Nickel or chrome-plated options are common for exposed cosmetic fasteners.
Automotive & New Energy Vehicles (NEV)
Within EV battery management modules, control unit housings, and charging connector assemblies, M3–M4 brass socket cap screws serve as non-magnetic, corrosion-resistant fastening solutions. Their compatibility with aluminum and composite substrates — without the galvanic corrosion risk of dissimilar steel-aluminum contact — makes them increasingly specified in lightweight NEV architectures. Learn more about our automotive fasteners and lightweight fastener solutions for the evolving NEV sector.
Marine & Industrial Equipment
For coastal or offshore applications requiring compact, corrosion-resistant fastening, brass socket cap screws in naval brass or nickel-plated variants provide a cost-effective solution versus full stainless steel where space constraints favor the hex socket drive format. Our custom fasteners for wind power also leverage similar corrosion-resistant technologies for harsh environments.
Frequently Asked Questions
Q1: What is the minimum order quantity (MOQ) for M3 M4 brass hexagon socket cap head screws?
For standard DIN 912 / ISO 4762 configurations in CuZn39Pb3, Keyfix accepts prototype orders from 500–2,000 pieces and standard production runs from 5,000 pieces. For custom specifications (non-standard lengths, alloys, or surface treatments), MOQs are confirmed at inquiry stage based on tooling requirements.
Q2: Can Keyfix supply RoHS-compliant lead-free brass socket cap screws?
Yes. Keyfix produces M3 M4 brass socket cap screws in CuZn21Si3P (lead-free silicon brass) for full RoHS and REACH compliance. Material compliance certificates, including third-party SGS test reports, are available upon request for EU and US export orders.
Q3: What quality certifications does Keyfix hold?
Keyfix is certified to IATF 16949, ISO 9001, and ISO 14001. Our quality system — detailed on our about us page — includes AMETEK spectrometer material verification, CMM dimensional inspection (±0.001 mm accuracy), 3D scanning, and 100% optical inspection on critical features — delivering a 0 PPM defect rate target.
Q4: What is the typical lead time for M3 M4 brass socket cap screws?
Standard specifications: 10–15 working days (subject to order volume). Custom specifications requiring new tooling or special alloy procurement: 20–30 working days. Express tooling options are available for urgent projects — contact our engineering team to discuss.
Q5: Do you supply brass socket cap screws to DIN 912 and ASME B18.3 simultaneously?
Yes. Keyfix produces brass socket cap screws to both metric (DIN 912 / ISO 4762) and inch (ASME B18.3) standards. For customers requiring dual-standard compliance, we provide dimensional reports against both standards’ tolerances.
Q6: Can Keyfix provide custom thread forms — fine pitch or special pitch for M3 M4?
Yes. Keyfix’s CNC turning capability supports non-standard thread pitches including M3×0.35 (fine), M4×0.5 (fine), and special lead/pitch combinations for precision adjustment screws. Thread form is verified via thread gauges and CMM profiling per ISO 965 tolerances.
Q7: What packaging options are available for bulk brass socket cap screw supply?
Standard packaging: bulk bag (1,000–5,000 pcs/bag) or counted tube/box packaging for assembly line use. Custom labeling (part number, batch code, QR traceability code) is available. All export orders are packed with moisture-barrier inner packaging and wooden crate outer packaging for sea freight protection.
Q8: Can I request material test reports (MTR) and certificates of conformance (CoC)?
Yes. Keyfix provides full material test reports (MTR), certificates of conformance (CoC), dimensional inspection reports, and RoHS/REACH declarations as standard documentation for all production orders. PPAP documentation is available for automotive and medical customers upon request.
About Keyfix — Brass Fasteners Manufacturer & Supplier in China
Founded in 2007, Keyfix is a China-based precision fastener manufacturer serving global OEM, Tier 1, and industrial customers across 20+ countries. Our engineering team of 20+ fastener specialists, combined with advanced CNC machining centers (5-axis, ±0.005 mm accuracy) and multi-station cold heading systems, positions Keyfix as a trusted supply partner for precision brass fasteners at any scale. Learn more about our full technology capabilities and precision stamping solutions.
For M3 M4 brass hexagon socket cap head screws, Keyfix offers:
- ✅ Full material alloy selection (CuZn39Pb3, lead-free CuZn21Si3P, and custom brass grades)
- ✅ DIN 912 / ISO 4762 / ASME B18.3 standard compliance
- ✅ Custom lengths, thread pitches, head geometry, and socket depths
- ✅ Surface treatments: nickel, chrome, tin, black oxide, lacquer
- ✅ IATF 16949 / ISO 9001 quality system with full traceability documentation
- ✅ Competitive lead times: 10–15 working days for standard; 20–30 days for custom
- ✅ Prototype quantities from 500 pcs; production from 5,000 pcs
Whether you need off-the-shelf M3 M4 brass socket cap screws for immediate replenishment or engineered custom brass fasteners built to your drawing, Keyfix’s team is ready to provide free engineering consultation and a rapid quotation.
Contact Keyfix today for a free engineering evaluation and competitive quote on your brass socket cap screw requirements.
